104 Upgrade and Maintenance Manual RX4770 M1
Power supply units

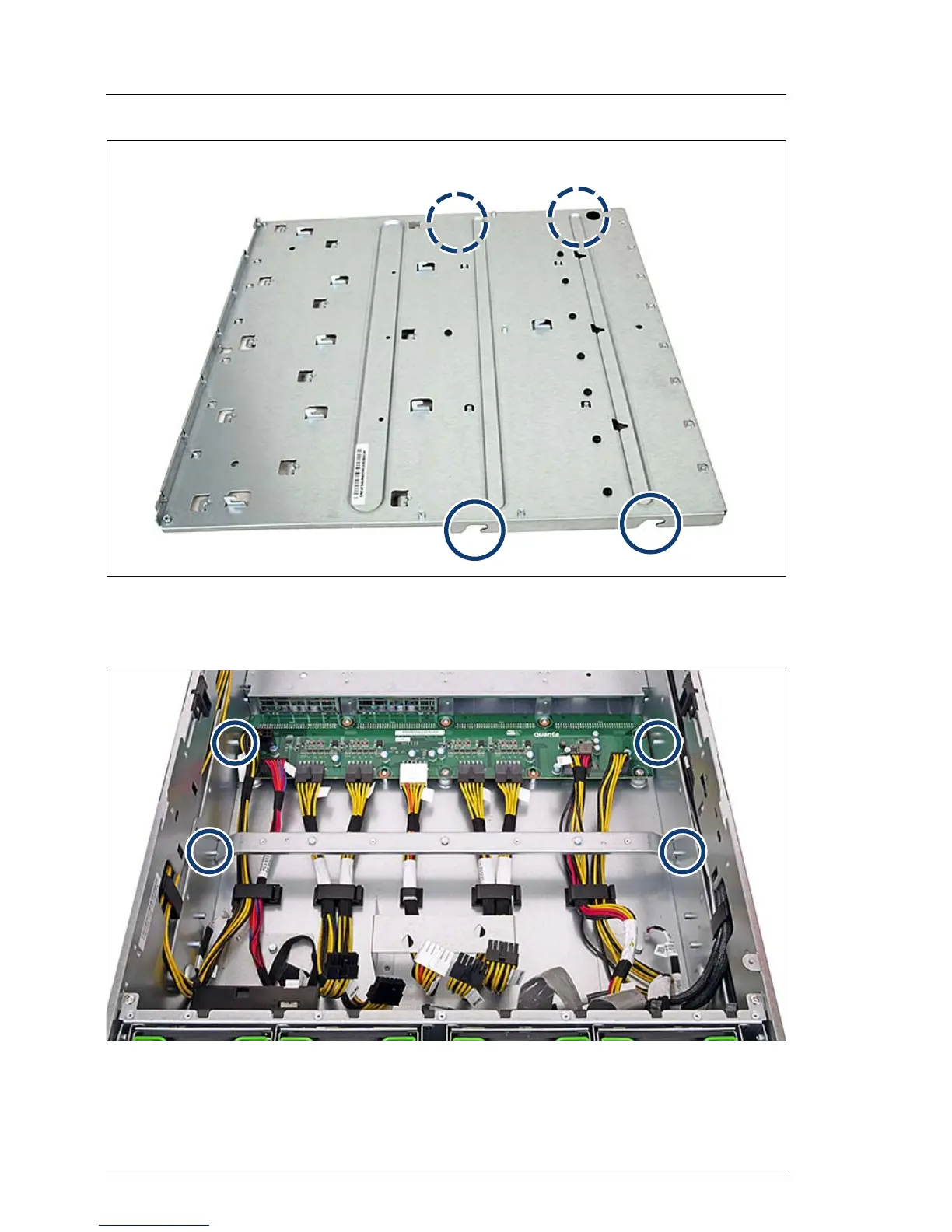

Figure 21: Installing the cover plate (A)
Ê Regard the 4 recesses of the cover plate (see circles).
Figure 22: Installing the cover plate (B)
Ê Place the recesses of the cover plate on the 4 bolts (see ovals).
