156 Upgrade and Maintenance Manual RX4770 M1
Expansion cards and backup units
9.5.1.3 Installing the BMC riser

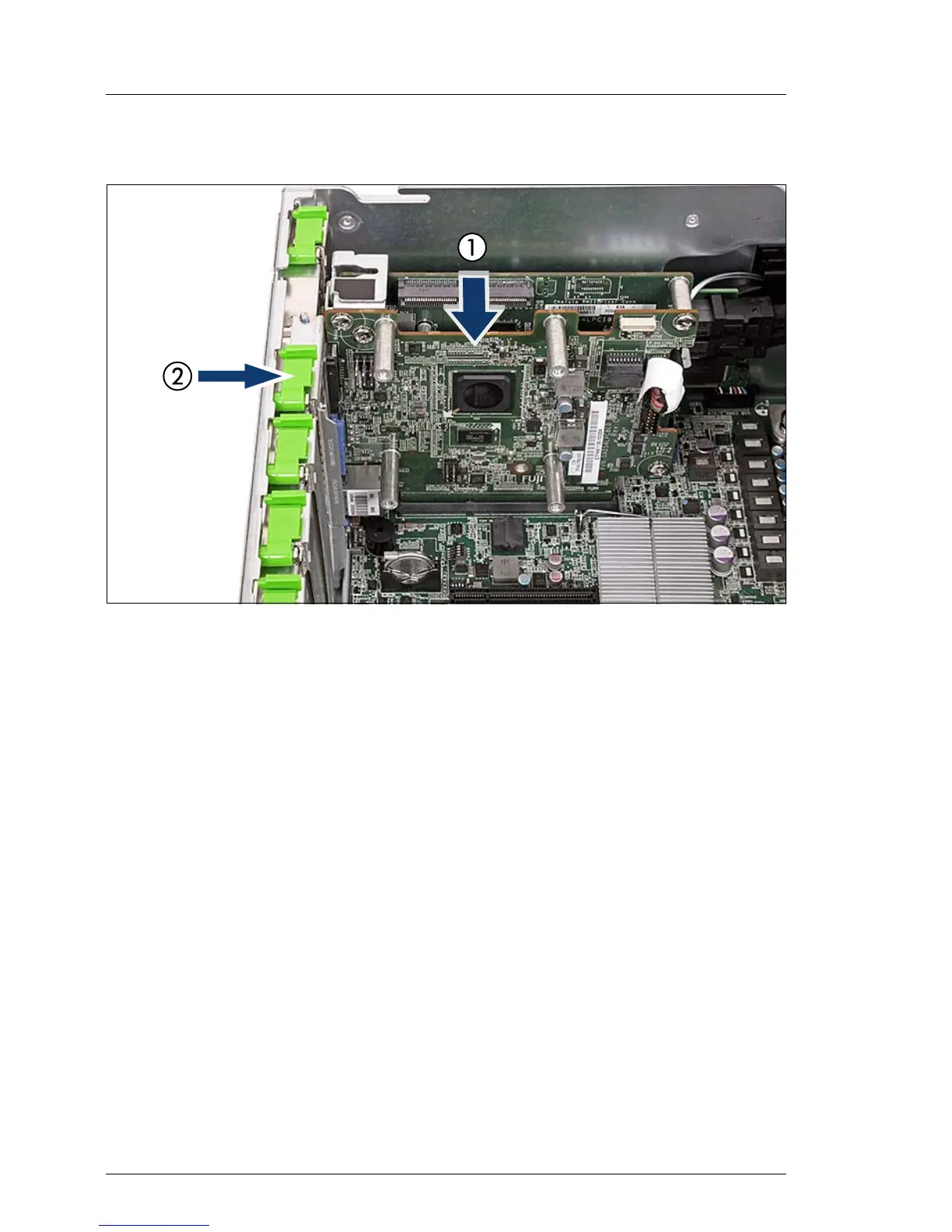

Figure 55: Installing the BMC riser
Ê Carefully insert the BMC riser into its slot and press down firmly until it is fully
seated in the slot (1).
I For slot preferences, please refer to section "Basic information" on
page 134.
Ê Close the slot lock (2).
9.5.1.4 Concluding steps
Ê "Reassembling" on page 53
Ê "Connecting the server to the power source" on page 57
Ê "Switching on the server" on page 58
Ê "Enabling SVOM boot watchdog functionality" on page 74
Ê "Resuming BitLocker functionality" on page 80
