Fujitsu Primergy RX4770 M1 - Replacing the LSD Module; Preliminary Steps; Removing the LSD Module

260 Upgrade and Maintenance Manual RX4770 M1
Accessible drives
12.1 Replacing the LSD module
12.1.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 59
Ê "Shutting down the server" on page 46
Ê "Disconnecting power cords" on page 46
Ê "Getting access to the component" on page 48
Ê "Removing memory boards" on page 220
12.1.2 Removing the LSD module

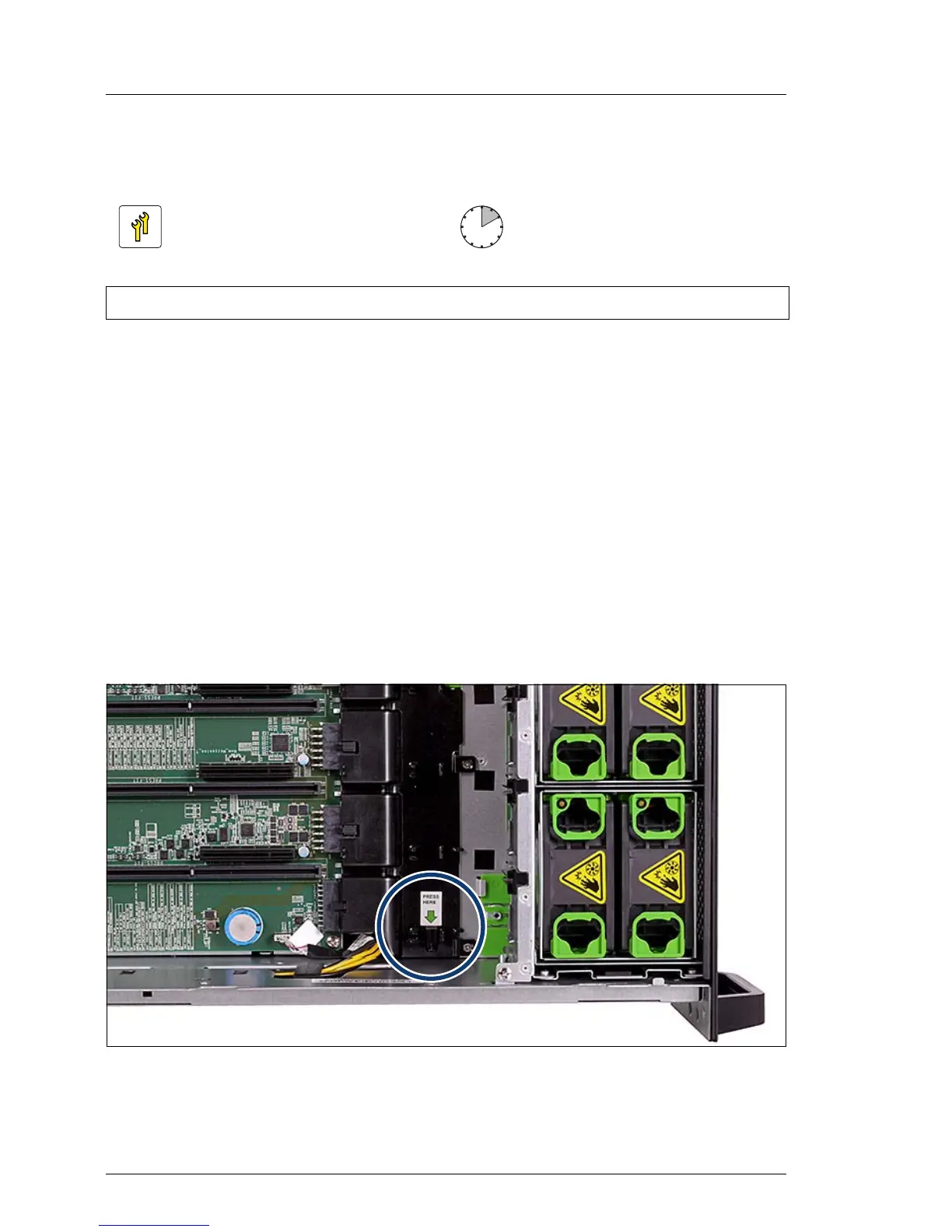

Figure 158: Location of the release button for the LSD module
Ê Press the release button (see circle) in order to pull out the LSD module.
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
