Fujitsu Primergy RX4770 M1 - Installing 2.5-inch HDD; SSD; PCIe SSD Modules

110 Upgrade and Maintenance Manual RX4770 M1
Hard disk drives / solid state drives
7.2 Installing 2.5-inch HDD / SSD / PCIe SSD
modules
Preliminary steps
Ê Locate the correct drive bay as described in section "Mounting order for 12x
2.5-inch HDD / SSD / PCIe SSD configurations" on page 109.

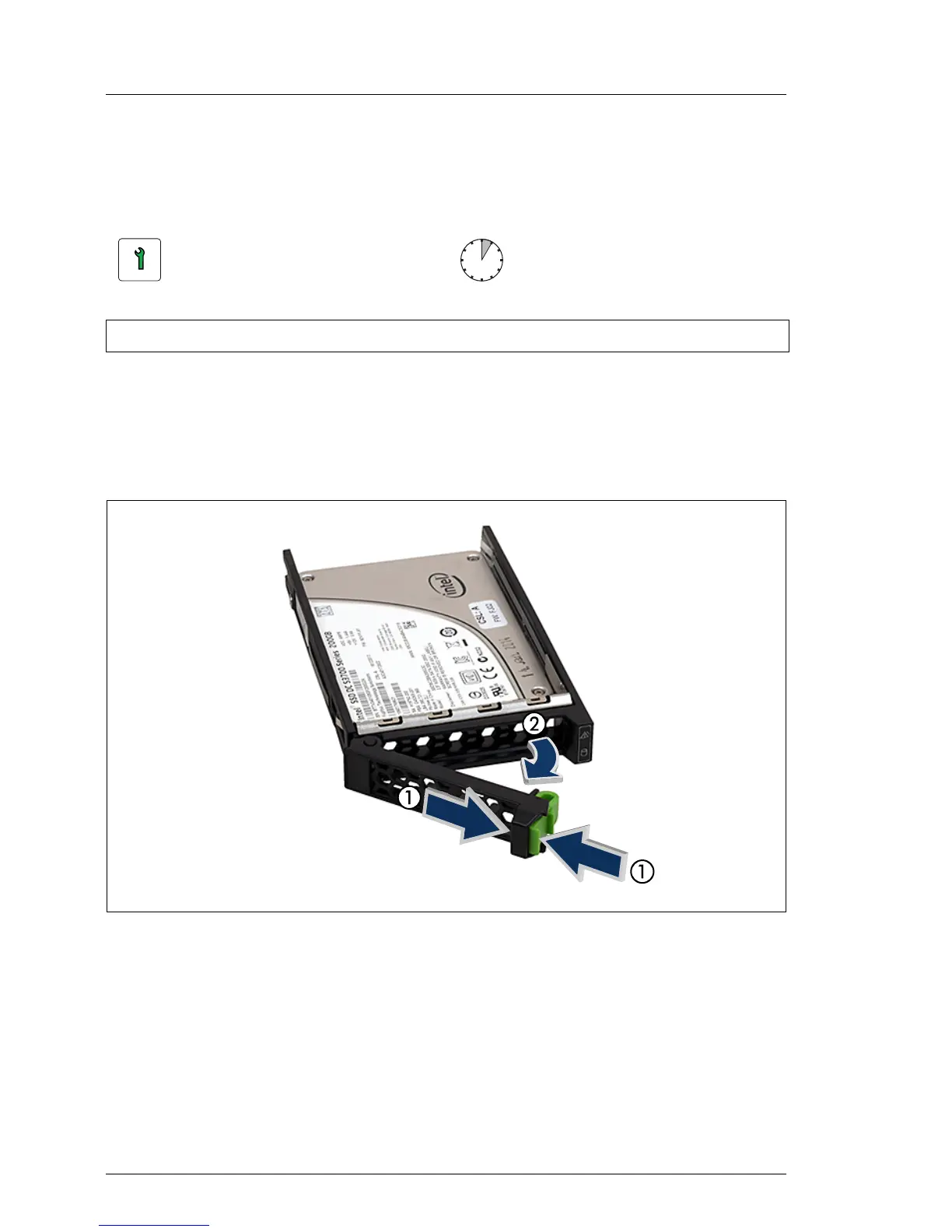

Figure 25: Unlocking the 2.5-inch HDD / SSD / PCIe SSD module
Ê Pinch the green locking clips (1) and open the locking lever (2).
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
