RX4770 M1 Upgrade and Maintenance Manual 111
Hard disk drives / solid state drives

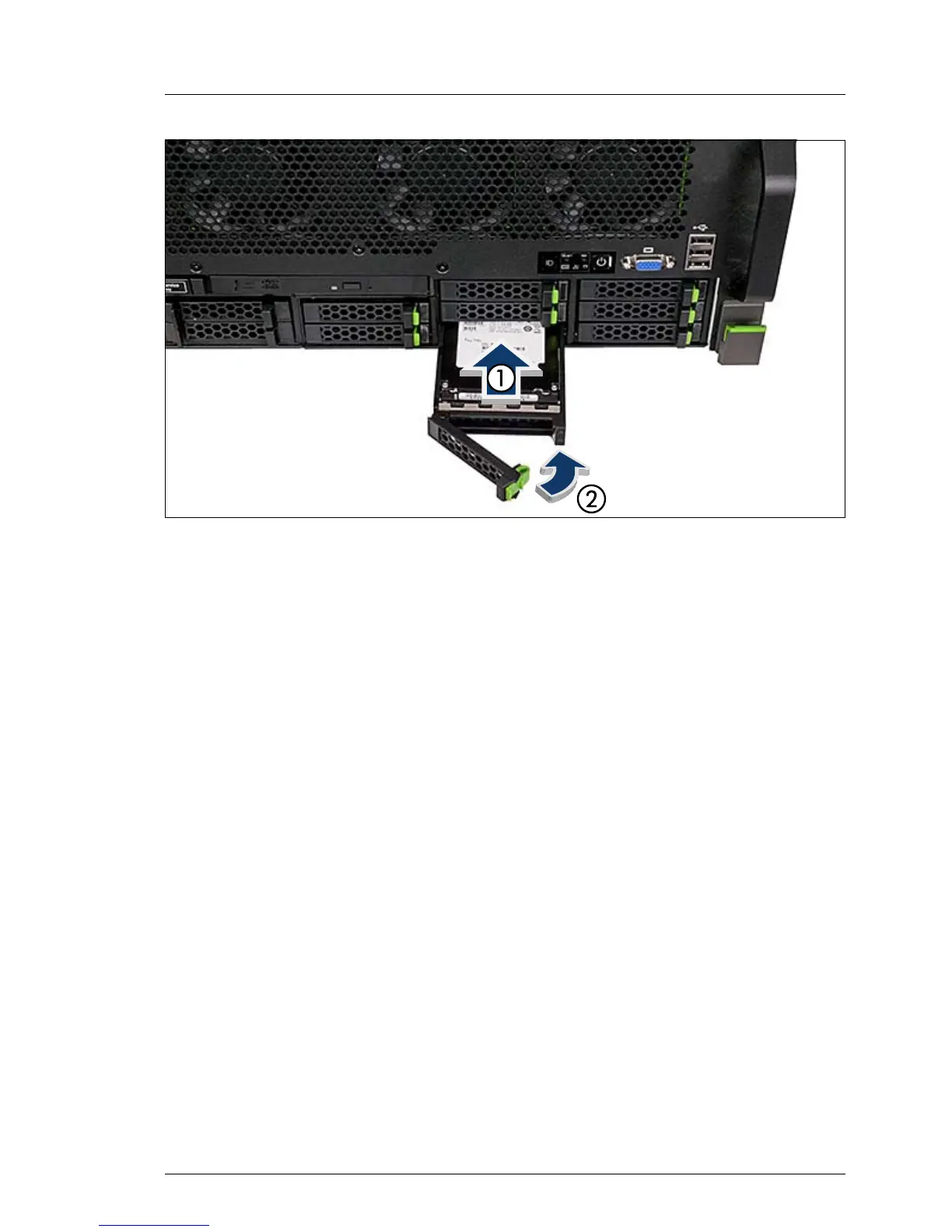

Figure 26: Installing the 2.5-inch HDD/SSD/PCIe SSD module
Ê Insert the HDD / SSD / PCIe SSD module into a drive bay and carefully push
back as far as it will go (1).
Ê Close the locking lever to lock the hard disk drive in place (2).
