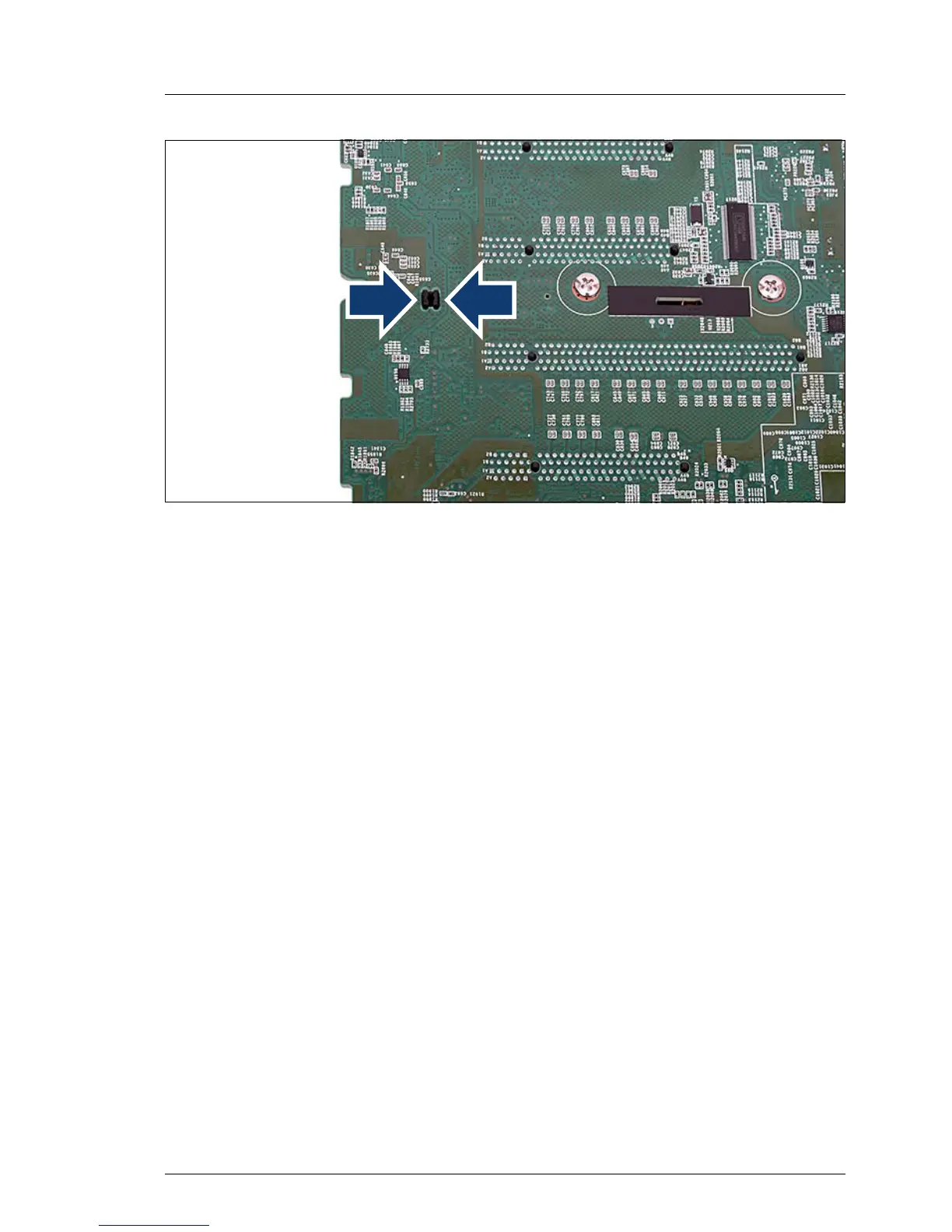

Figure 183: Removing the TPM spacer
Ê Using a small pair of combination pliers, press together the hooks on the
TPM spacer and remove it from the system board.
I If the TPM is to be replaced, the TPM spacer may remain on the
system board.
14.4.2.3 Concluding steps
Ê "Installing the system board" on page 304
Ê "Reassembling" on page 53
Ê "Connecting the server to the power source" on page 57
Ê "Switching on the server" on page 58
