RX4770 M1 Upgrade and Maintenance Manual 159
Expansion cards and backup units

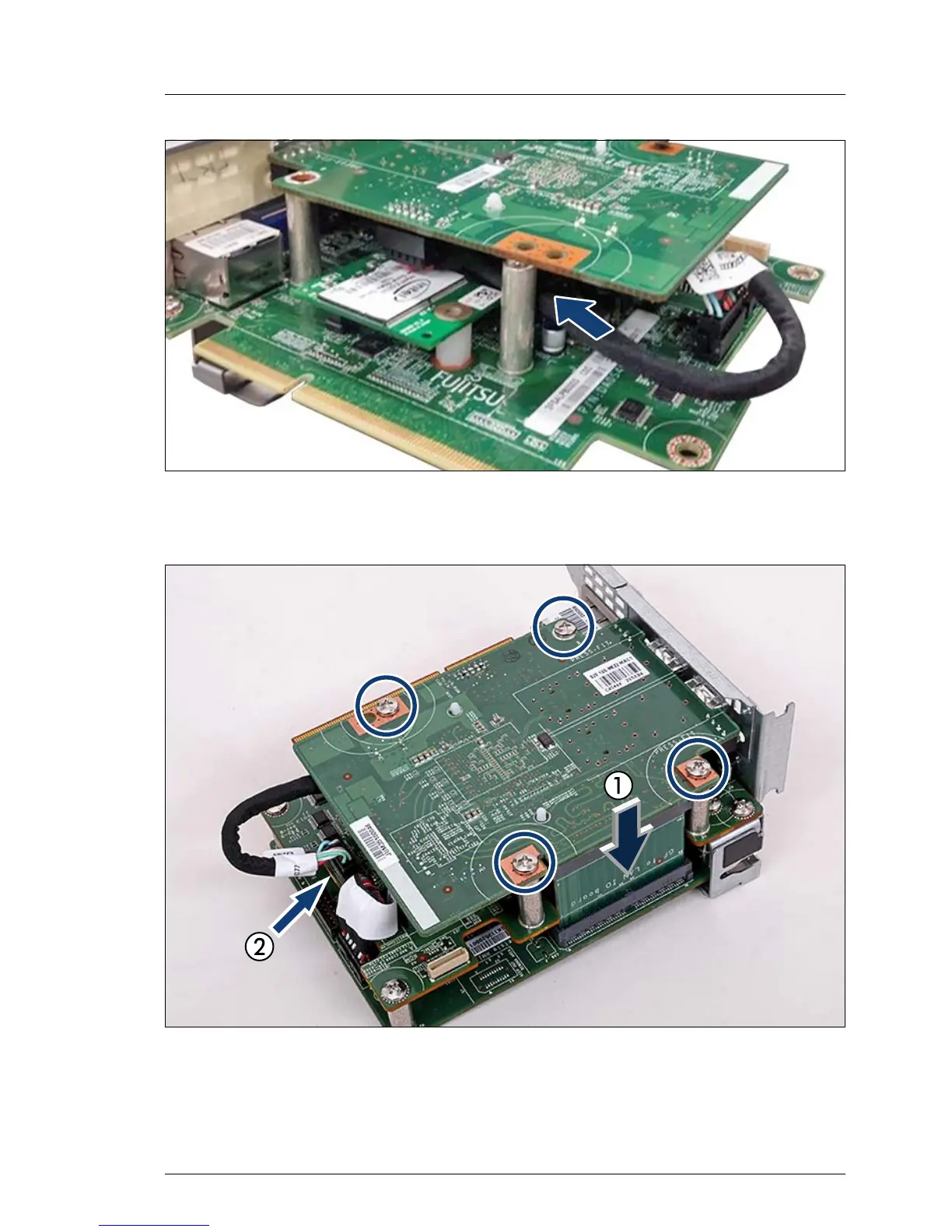

Figure 58: Cabling LAN mezzanine card (A)
Ê Route the cable behind the bolt (see arrow).
Figure 59: Installing the LAN Mezzanine card onto the BMC riser
Ê Plug the cable into the dedicated connector on the intermediate level (2).
Ê Fix the LAN Mezzanine card with 4 screws (see circles).
