160 Upgrade and Maintenance Manual RX4770 M1
Expansion cards and backup units

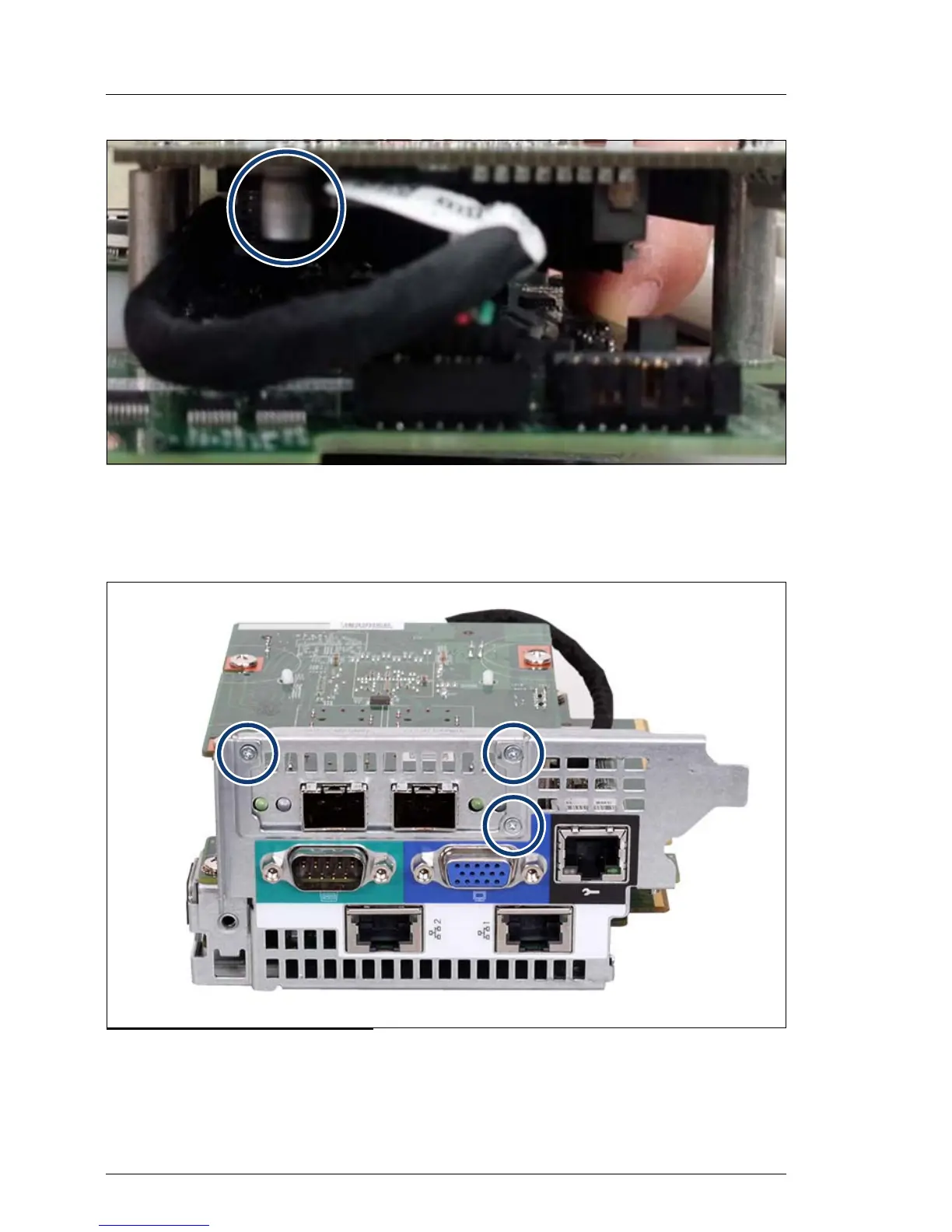

Figure 60: Cabling LAN mezzanine card (B)
Ê Make sure that the cable does not touch the fastening screw of the heat sink
(see circle).
Figure 61: Fixing the new front bezel
Ê Tighten the new front bezel with 3 screws (see circles) onto the BMC riser
slot bracket.
