RX4770 M1 Upgrade and Maintenance Manual 305
System board and components
Ê Carefully shift the system board towards the server rear until the plug shells
engage with the cut-outs in the connector panel.

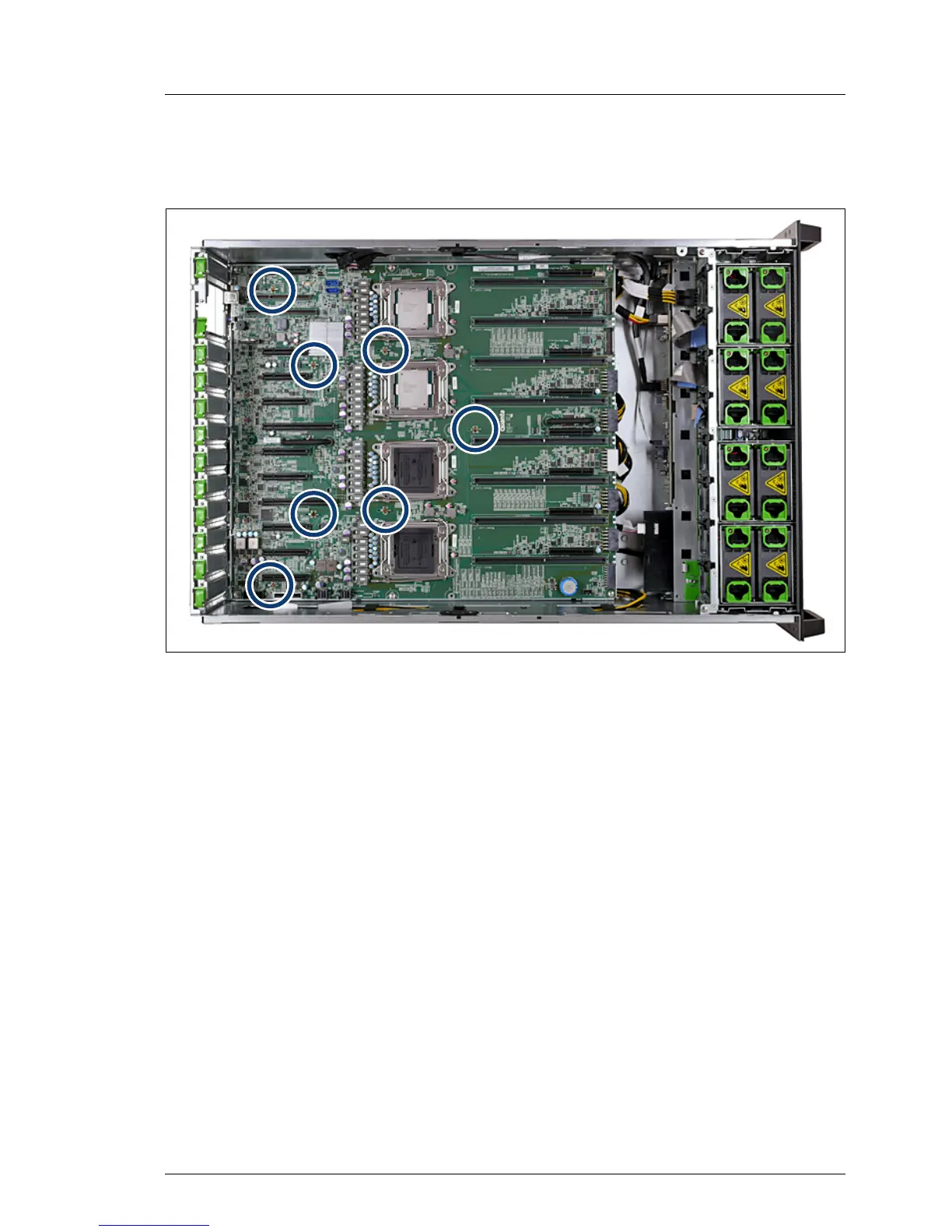

Figure 189: Attaching the system board
Ê Ensure that the system board is properly seated in the grounding brackets
(see circles).
