RX4770 M1 Upgrade and Maintenance Manual 131
System fans

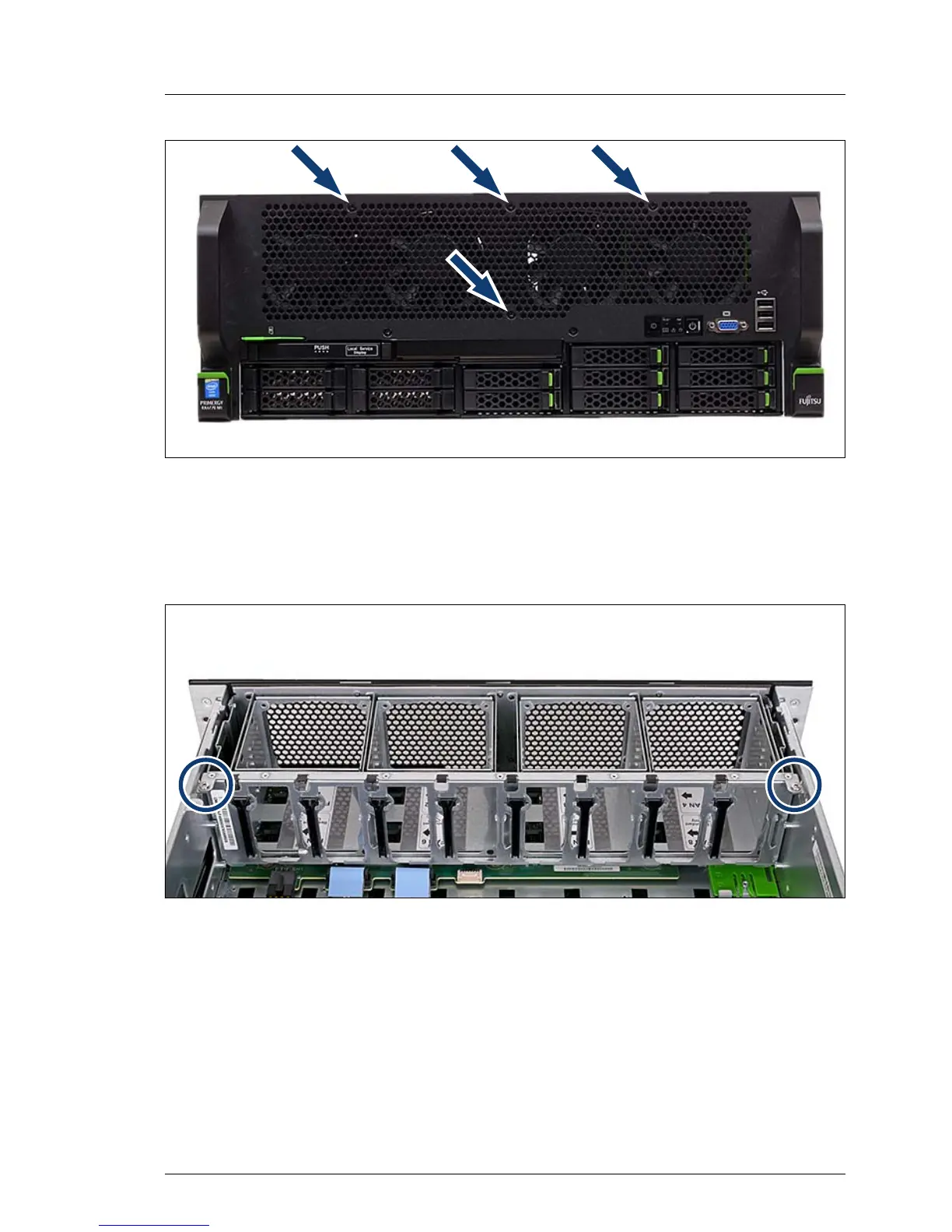

Figure 39: Installing the fan box (A)
Ê Fasten the 4 screws at the front bezel (see arrows).
Installing the fan box
Figure 40: Installing the fan box (B)
Ê Fasten the 2 screws of the fan box (see circles).
Ê Reinstall all fan modules (see section "Installing a system fan" on page 126).
