System fans
Removing the fan backplane
Ê Remove all cables from the backplane.

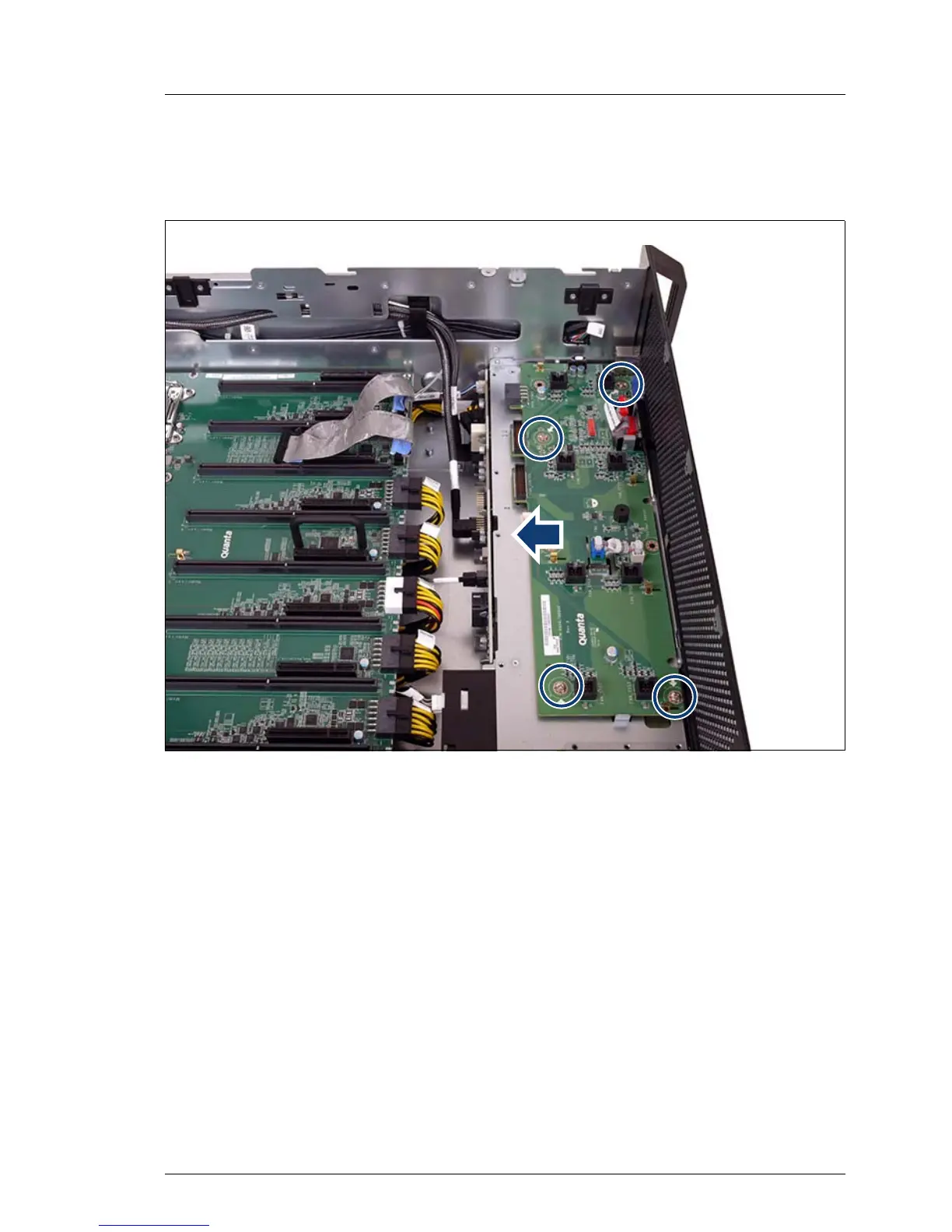

Figure 37: Removing the fan backplane
Ê Remove the 4 screws (see circles).
Ê Slide the fan backplane leftward in the direction of the arrow and lift it out of
the housing.
