Accessible drives

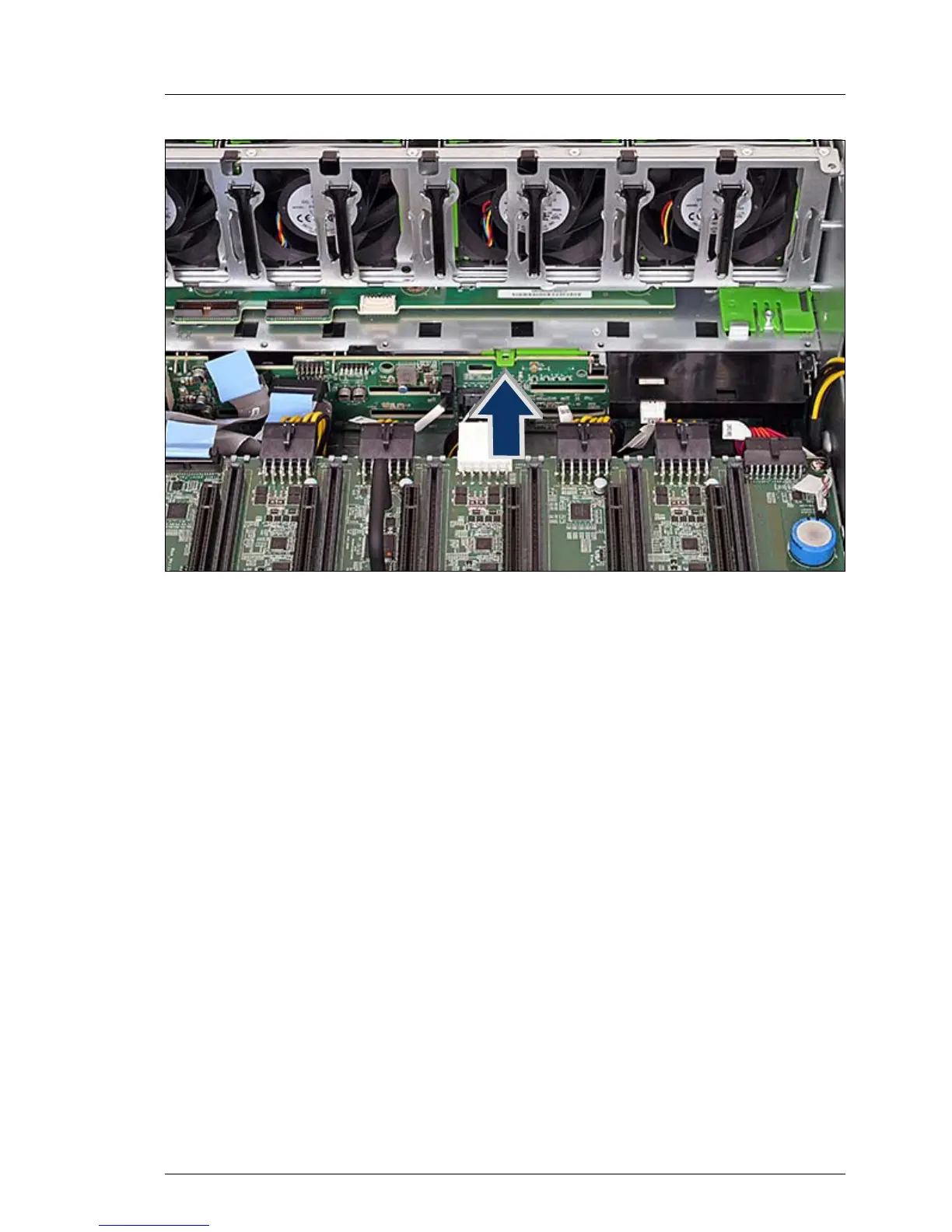

Figure 163: Lifting the optical drive connector
Ê Lift the green connector (see arrow) a little bit to loosen the optical drive from
the hot-swap backplane while pushing it a little bit to get the optical drive out
of the housing.
Ê Remove the optical drive out of the housing.
Ê Remove the green connector (see figure 164 on page 266) from the
defective optical drive.
