RX4770 M1 Upgrade and Maintenance Manual 141
Expansion cards and backup units

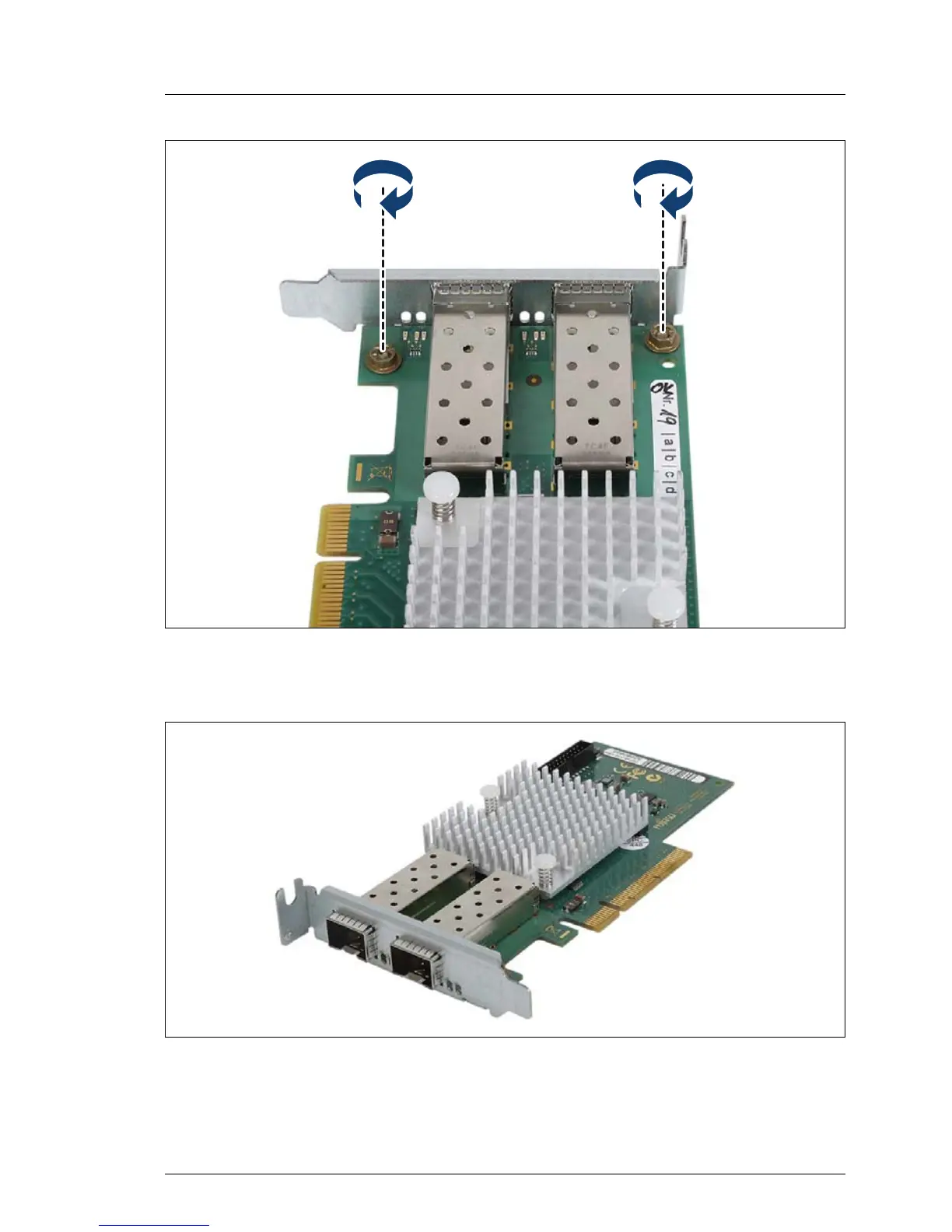

Figure 46: Network adapter D2755 - Mounting the slot bracket (B)
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 47: Network adapter D2755 - Mounting the slot bracket (C)
I Assembled network adapter D2755
