Main memory

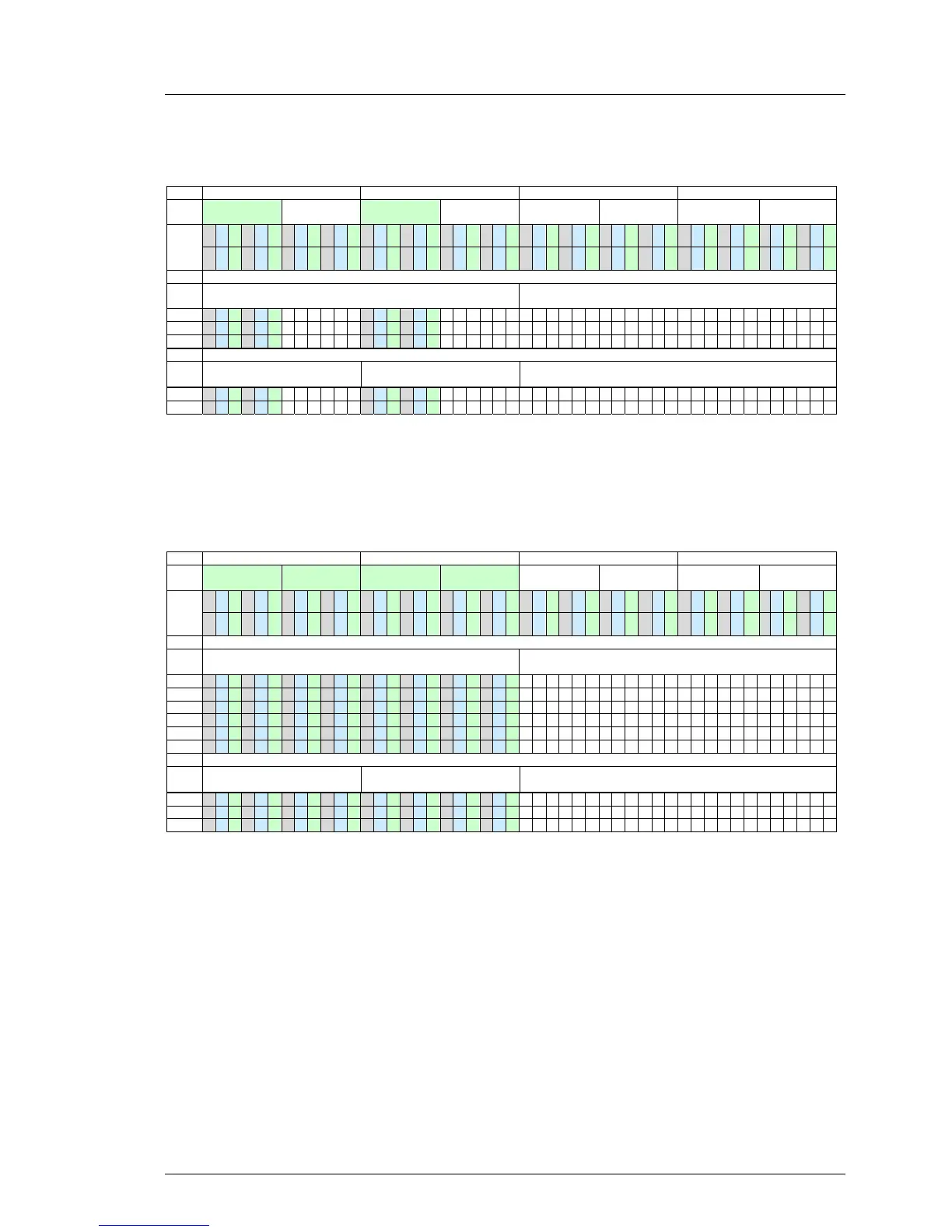

Lockstep / Sparing mode (2 sockets w/ each 1 mem. board)
Figure 116: Lockstep / Sparing mode (2 sockets w/ each 1 mem. board)
Lockstep / Sparing mode (2 sockets w/ each 2 mem. boards), capacity
oriented
Figure 117: Lockstep / Sparing mode (2 sockets w/ each 2 mem. boards), capacity oriented
CPU CPU1 CPU2 CPU3 CPU4
MEM
Riser
MEM1 MEM2 MEM3 MEM4 MEM5 MEM6 MEM7 MEM8
DIMM
A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3
C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3
DIMMs Dual CPU configuration
(if all modules are of the same capacity)
8 1 1 1 1
16 1 1 1 1 1 1 1 1
24 1 1 1 1 1 1 1 1 1 1 1 1
DIMMs Dual CPU configuration
(if modules are of different capacities)
Dual CPU configuration
(if modules are of different capacities)
8 1 1 1 1 2 2 2 2
12 1 1 1 1 1 1 2 2 2 2 2 2
CPU CPU1 CPU2 CPU3 CPU4
MEM
Riser
MEM1 MEM2 MEM3 MEM4 MEM5 MEM6 MEM7 MEM8
DIMM
A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3 A1 A2 A3 B1 B2 B3
C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3 C1 C2 C3 D1 D2 D3
DIMMs Dual CPU configuration
(if all modules are of the same capacity)
8 1 1 1 1
16 1 1 1 1 1 1 1 1
24 1 1 1 1 1 1 1 1 1 1 1 1
32 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
40 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
48 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
DIMMs Dual CPU configuration
(if modules are of different capacities)
Dual CPU configuration
(if modules are of different capacities)
8 1 1 1 1 2 2 2 2
16 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2
24 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2
