RX4770 M1 Upgrade and Maintenance Manual 301
System board and components
Removing the memory rug

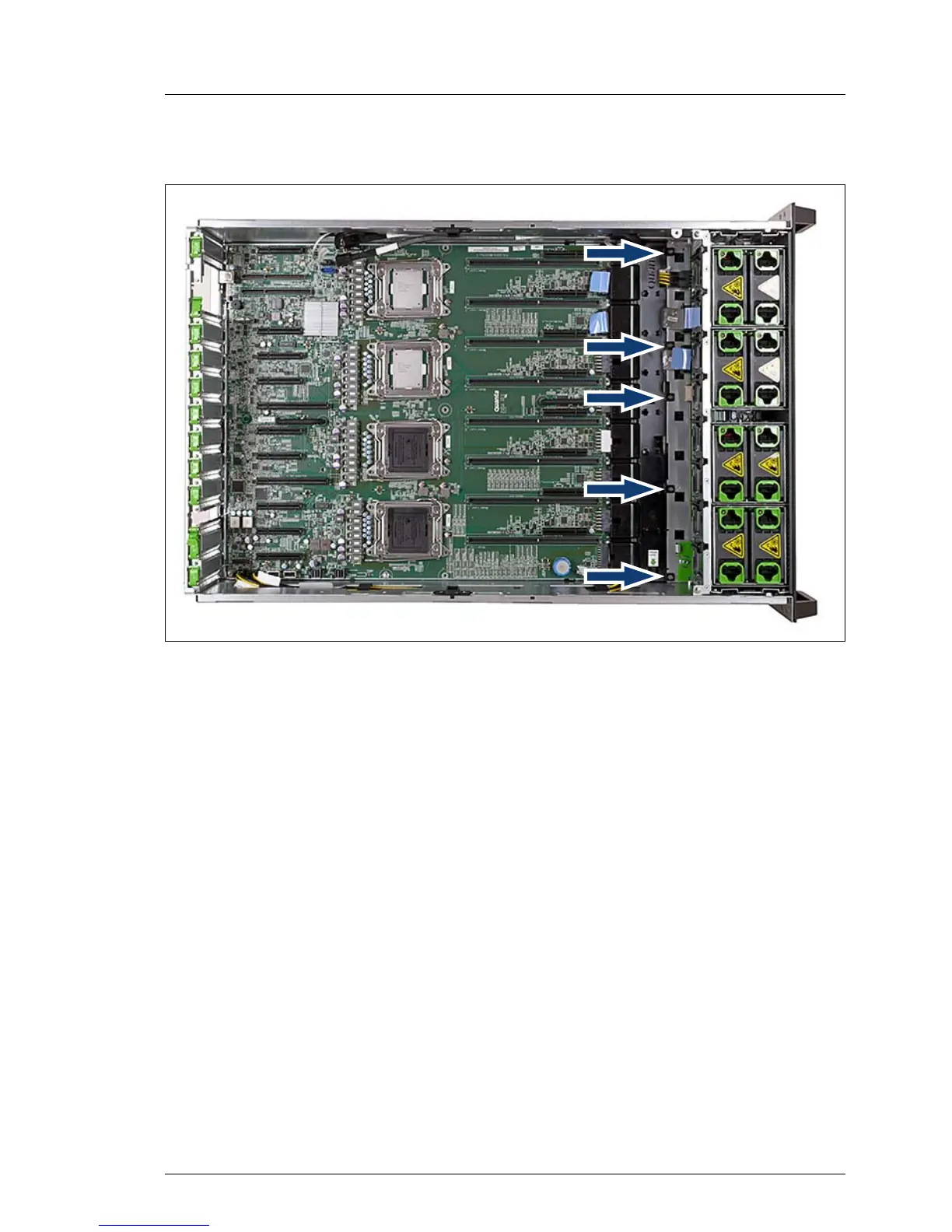

Figure 185: Removing the memory rug
Ê Undo the 5 screws from the memory rug (see arrows).
Ê Remove the memory rug.
