Ê If required, install the rack mounting bracket and rack system into the rack
as described in the Rack Mounting Kit - RMK-F1/F2 DROP-IN Quick
Release Lever (QRL)" Mounting Instructions.
I The printed poster is contained in the rack mounting kit.
V CAUTION!
Do not lift the server using the plastic handles.

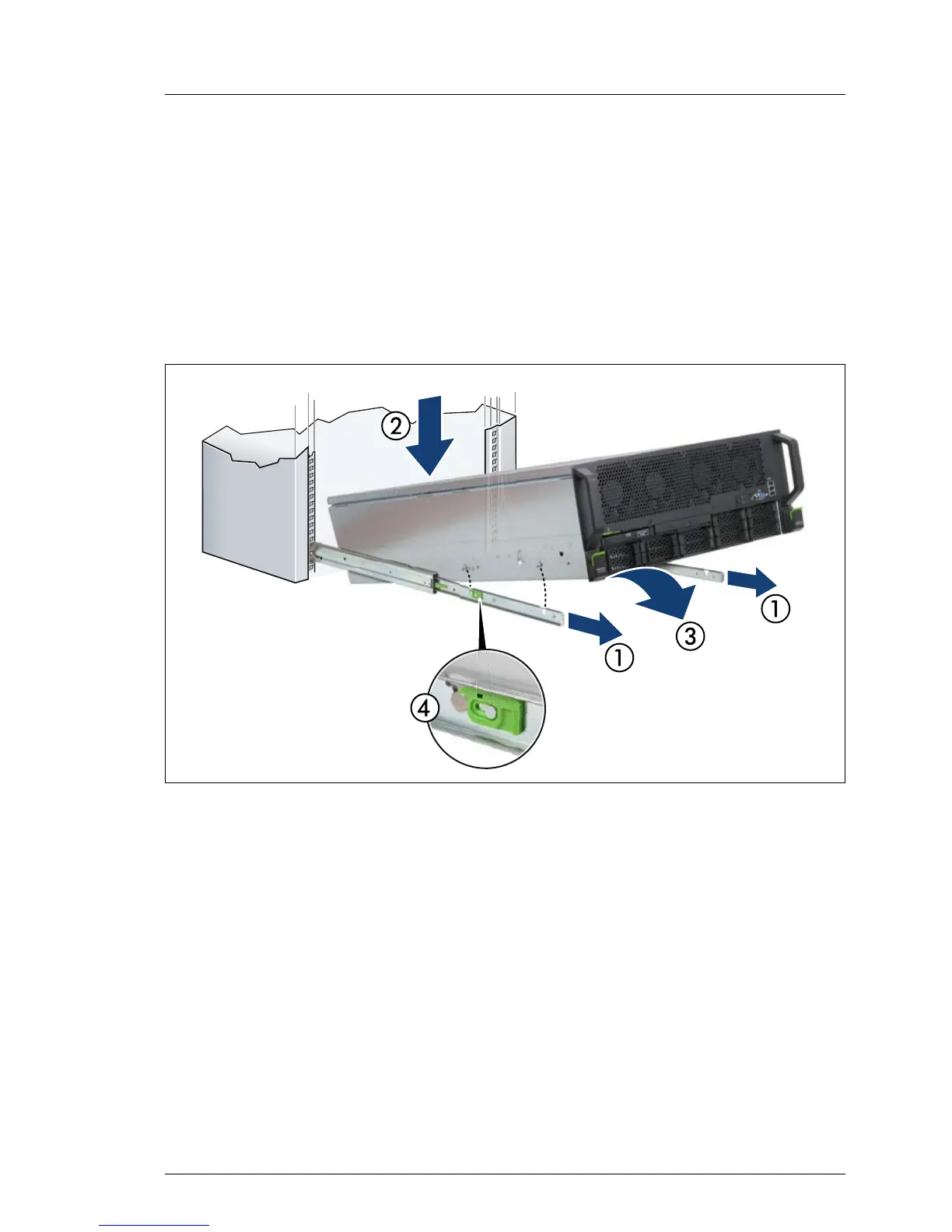

Figure 7: Mounting the server onto the rack rails
Ê Fully extend the telescopic rails until they lock in place (1).
Ê At a slight angle, lower the server onto the rear mounting point on the
telescopic rails (2).
Ê Fold down the server (3). Ensure that all six rack mounting bolts are properly
seated in the mounting points on the telescopic rails and that the locking
bars engage (4).
