IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-62 Section 8-4 - Cables - Replacement Procedures
PRELIMINARY
1) Remove the following covers: left side, right side, DVD, front, left rear, right rear.
2.) Disconnect the BIF cable lead (two connectors) and the OPIO cable lead from the monitor.
3.) Unscrew the two cable holders as shown in Figure 8-72 below.
4.) Release Articulated Arm lock and raise the monitor arm - see left picture Figure 8-73 below.
5.) Using side cutters, cut four tie-wraps located on upper articulated arm- see Figure 8-73, right.
• Air Inlet (Left Side) Cover Removal Procedure on page 8 - 7
• Right Side Cover Removal Procedure on page 8 - 10
• DVD Cover Removal Procedure on page 8 - 11
• Front Cover Removal Procedure on page 8 - 16
• Left Rear Cover Removal Procedure on page 8 - 23
• Right Rear Cover Removal Procedure on page 8 - 20

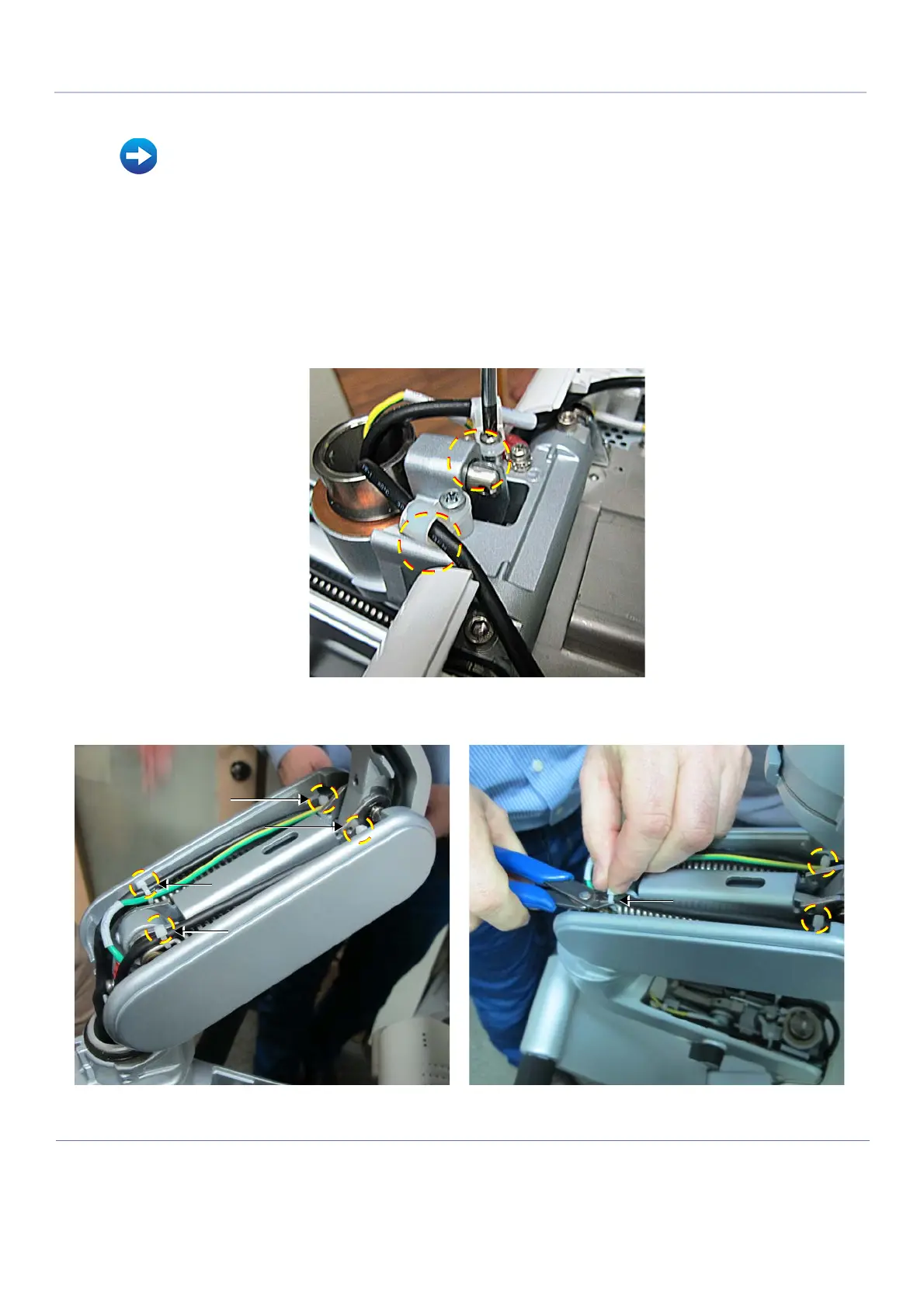

Figure 8-72 Cable Holders Located on Articulated Arm
Figure 8-73 Cutting Tie-wraps on the Articulated Arm
