Chapter 8 - Re
placement Pr
ocedures
8-75
PRELIMINARY
4.)
Reconnect the two Ground
cabl
es previously removed -
see
Figur
e 8-96 below
.
5.)
Thread the white OPIO to BIF cable thro
ugh the OPIO platform aper
ture a in
Figure 8-
97 below
.

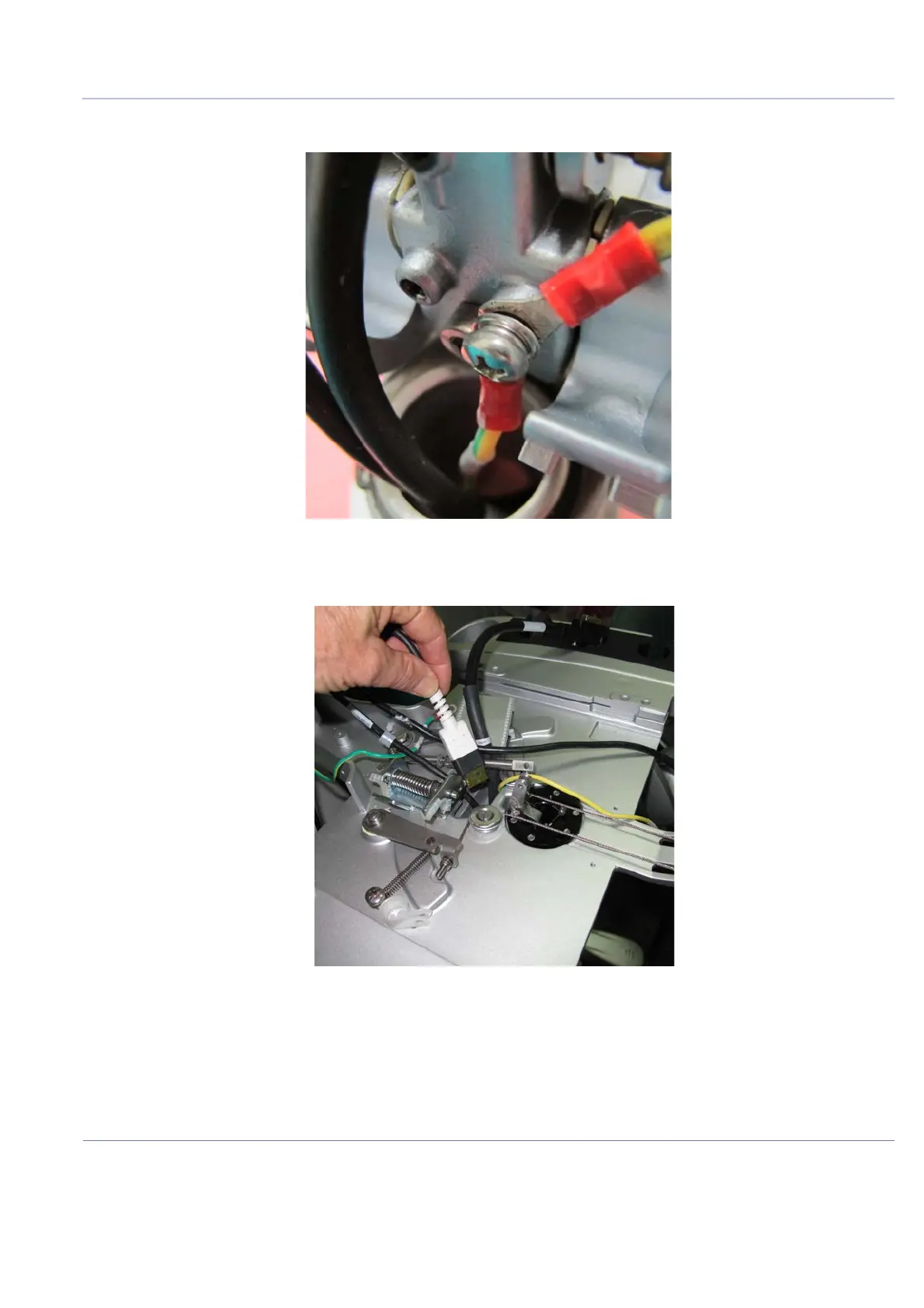

Figure 8-96
Figure 8-97 White OPIO to BIF Cable
304
306
