IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-113
PRELIMINARY
5.) Loosen and remove 6 CFE Board retaining screws as shown in - Figure 8-136 below.
6.) Gently pull the CFE release lever upwards to release the CFE Board and then lift the CFE Board
up and away from the Cage assembly - see Figure 8-137 below.
7.) Place the CFE Board on a clean stable surface.
NOTE: Proceed with the following instructions in order to open the TRX32 Box and remove the four TRX32
Boards. These will be required later for refitting into the replacement CFE Board.

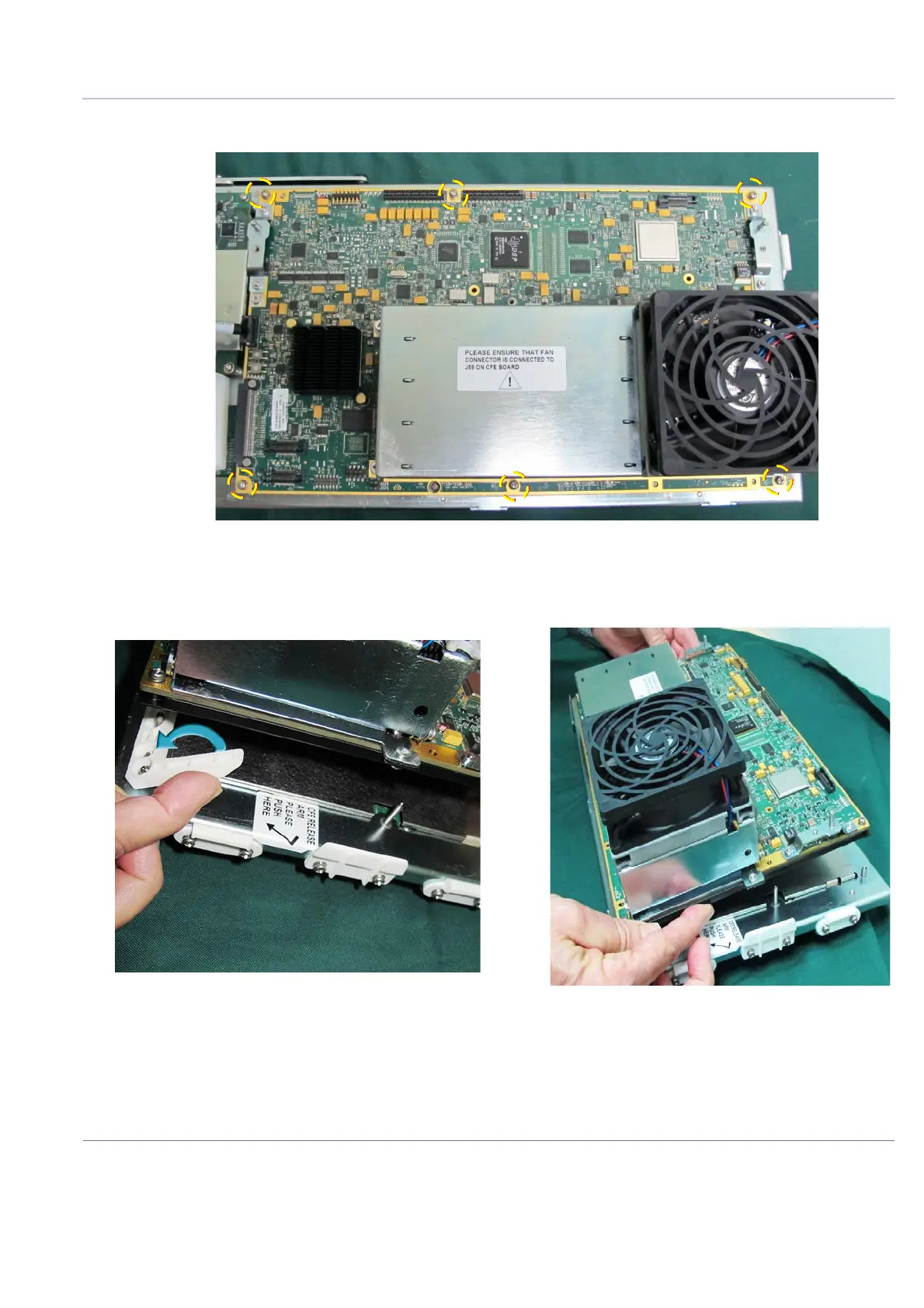

Figure 8-136 CFE Board showing 6 Retaining Screws
Figure 8-137 CFE Release Lever and Release of CFE Board
