IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-131
PRELIMINARY
4.) Disconnect the fan cable from the CFE Board - Figure 8-158.
NOTE: The fan is secured to the cover of the TRX Box with four rubber holders (grommets) - one at
each corner - as shown below.
5) Cut each of the four rubber grommets and remove them to release the fan (see Figure 8-159).

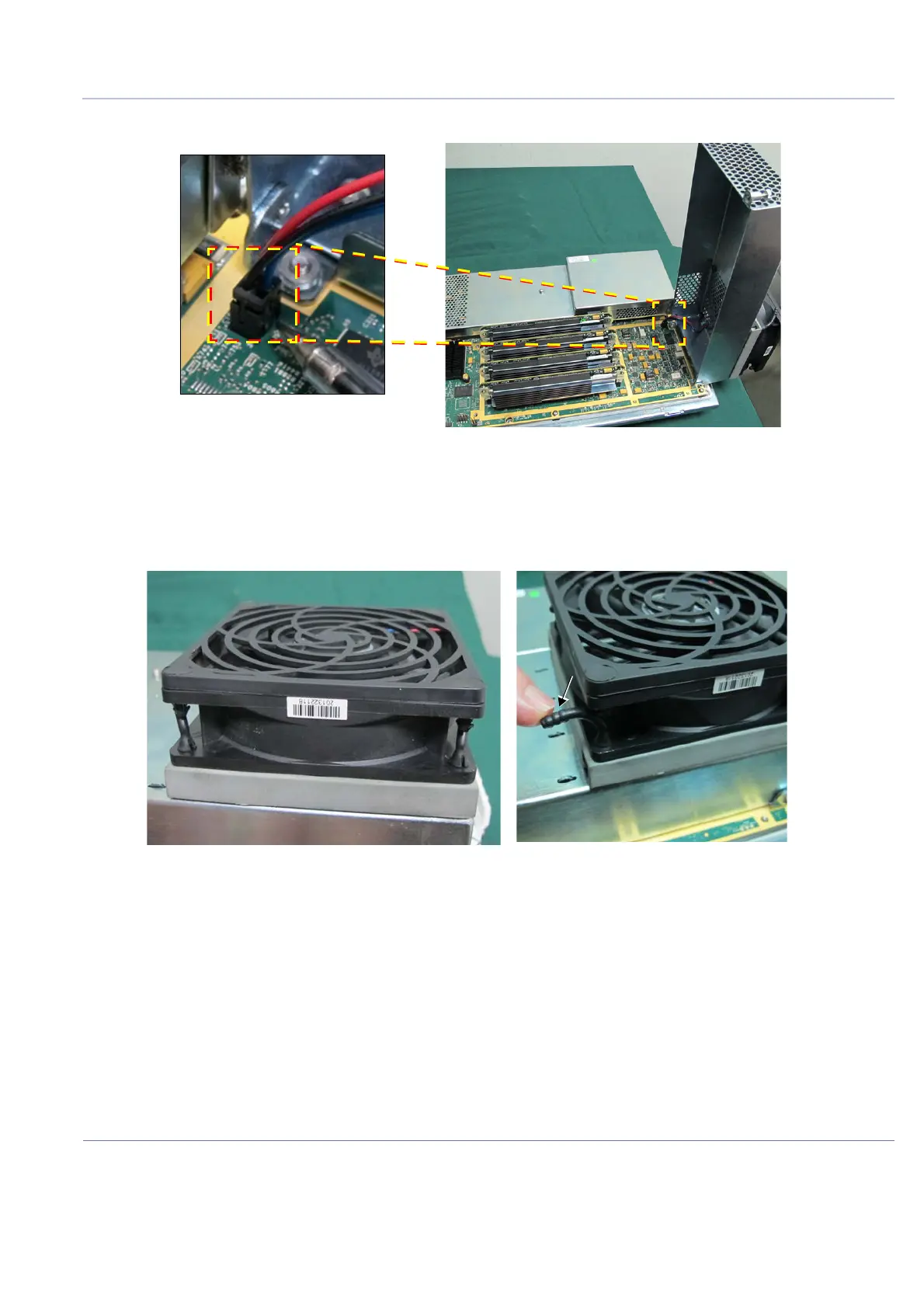

Figure 8-158 TRX32 Box Fan Cable Connected to CFE Board
Figure 8-159 Fan Secured to TRX32 Box
