1.2 Names and Functions of Parts
11
1
Chapter 1 Overview

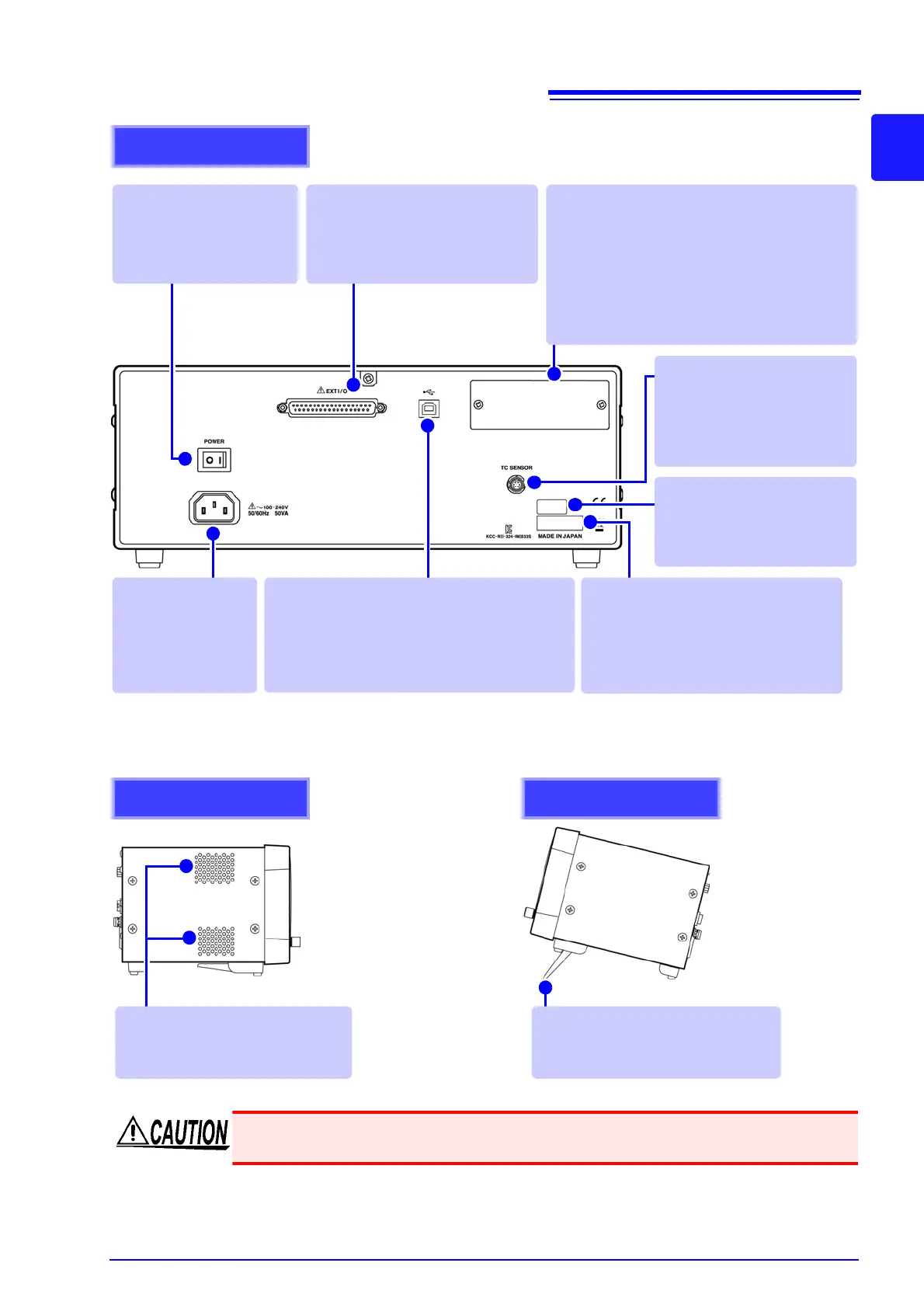

Rear
Power Inlet
Connect the supplied
power cord (p. 31).
USB Connector
Connect to a computer to control the instrument
with communication commands
(Ref to Communication Instruction Manual (LCR
Application Disk)
.
Interface port
Install optional interfaces.
(p. 263), Communication Instruction Manual
(LCR Application Disk)
• Z3000 GP-IB Interface
• Z3001 RS-232C Interface
(When using a printer)
• Z3002 LAN Interface
Right side
Stand
Enables the instrument to be tilted.
Left side
Vents
Keep clear of obstructions (p. 5).
Power Switch
(Main power)
Turns the power on and off.
(p. 35).
Manufacturer's Serial Number
Shows the serial number.
Do not remove this label, as it is required
for product support.
MAC address of the LAN
(p. 264), (Ref to Communica-
tion Instruction Manual (LCR
Application Disk)
EXT I/O Connector
Connect to a PLC or I/O board to
control measurement start, and to
acquire comparator results (p. 309).
TC sensor terminal
Connect a temperature probe
to convert resistance values
to reference temperatures
(p. 33), (p.A13).
Do not apply heavy downward pressure with the stand extended. The stand could be dam-
aged.
