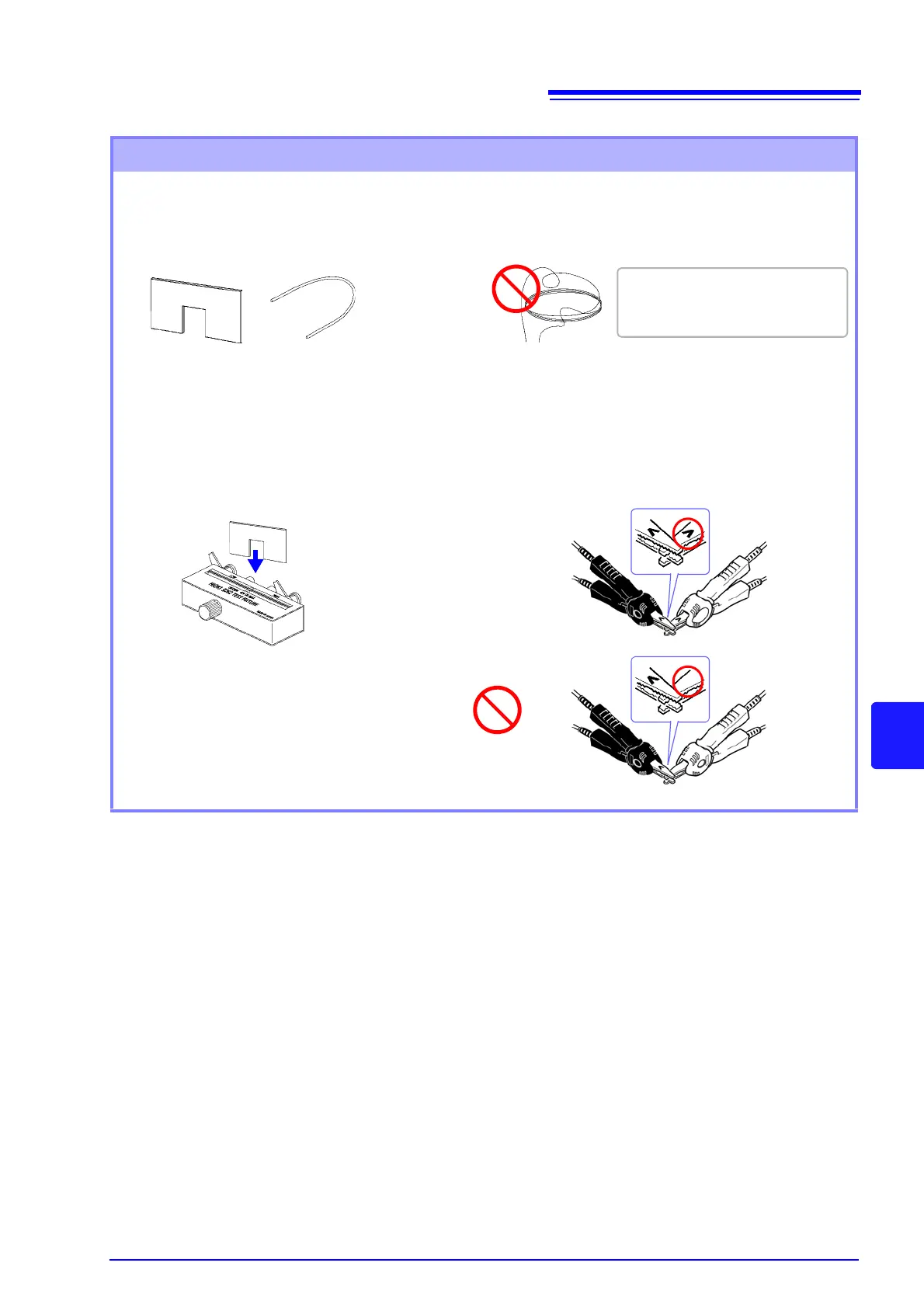

Necessary item: Shorting bar
This shorting bar is for short circuiting together the ends of the test leads. Use an object whose impedance is as low as
possible.
If you use a metallic wire or the like
as a shorting bar, try to ensure that
it is as thick and short as possible.
Usage example:
Arrange the test leads as closely as possible to their configuration in which measurement will be performed, and short
circuit together the HIGH and LOW leads.
H
CUR
H
POT
L
CUR
L
POT
L
CUR
H
CUR
H
POT
L
POT
OK
In order to keep external influences as low as
possible, be sure to thrust the shorting bar in
all the way.
OK
OK
Short-circuit the tips with the V marks on the clips
aligned as shown in the diagram, and then perform
short compensation.
(When using a fixture) (When using optional L2000)
