The compensation values from last time are dis-
played in a confirmation screen.
(If compensation has never been performed, the
compensation values become 0.)
5

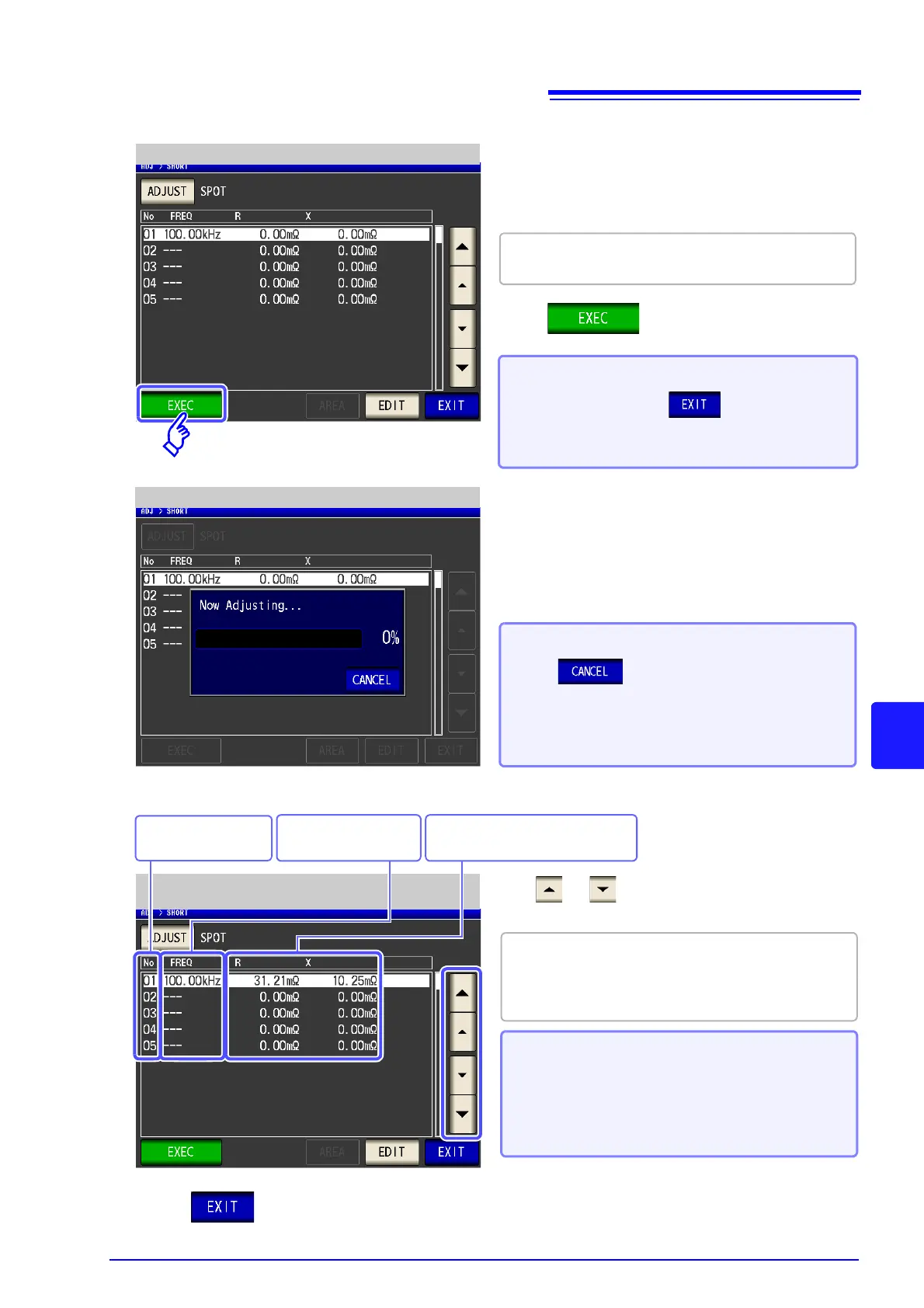

Short Compensation (Spot Compensation)
6
Compensation starts.
Compensation value acquisition time:
Varies with the measurement frequency and num-
ber of points.
Performing Short Compensation (Spot Compensation)
Check that the measurement cable is in a short-circuit
state.
Press .
When you want to cancel compensation:
Press .
Compensation is cancelled and the compensation
screen is redisplayed.
(The short circuit compensation values from last time
remain.)
When you do not want to acquire the compen-
sation values: Press .
The compensation screen is redisplayed, and the com-
pensation values from last time become valid.
When you want to disable open compensa-
tion data: (p. 230)
When compensation failed: (p. 230)
When you want to disable open compensa-
tion data: (p. 230)
7
• If compensation ends normally, the effective resis-
tance and reactance are displayed.
• The valid compensation range for impedance is 1
k or less.
Use or to check the effective resistance
and reactance of each compensation point.
Short Compensation
(Spot Compensation)
Indicates the compensation results.
(Effective resistance, reactance)
Indicates the measure-
ment frequencies.
Indicates the com-
pensation numbers.
