3.3 When TRANSFORMER Mode
42
4

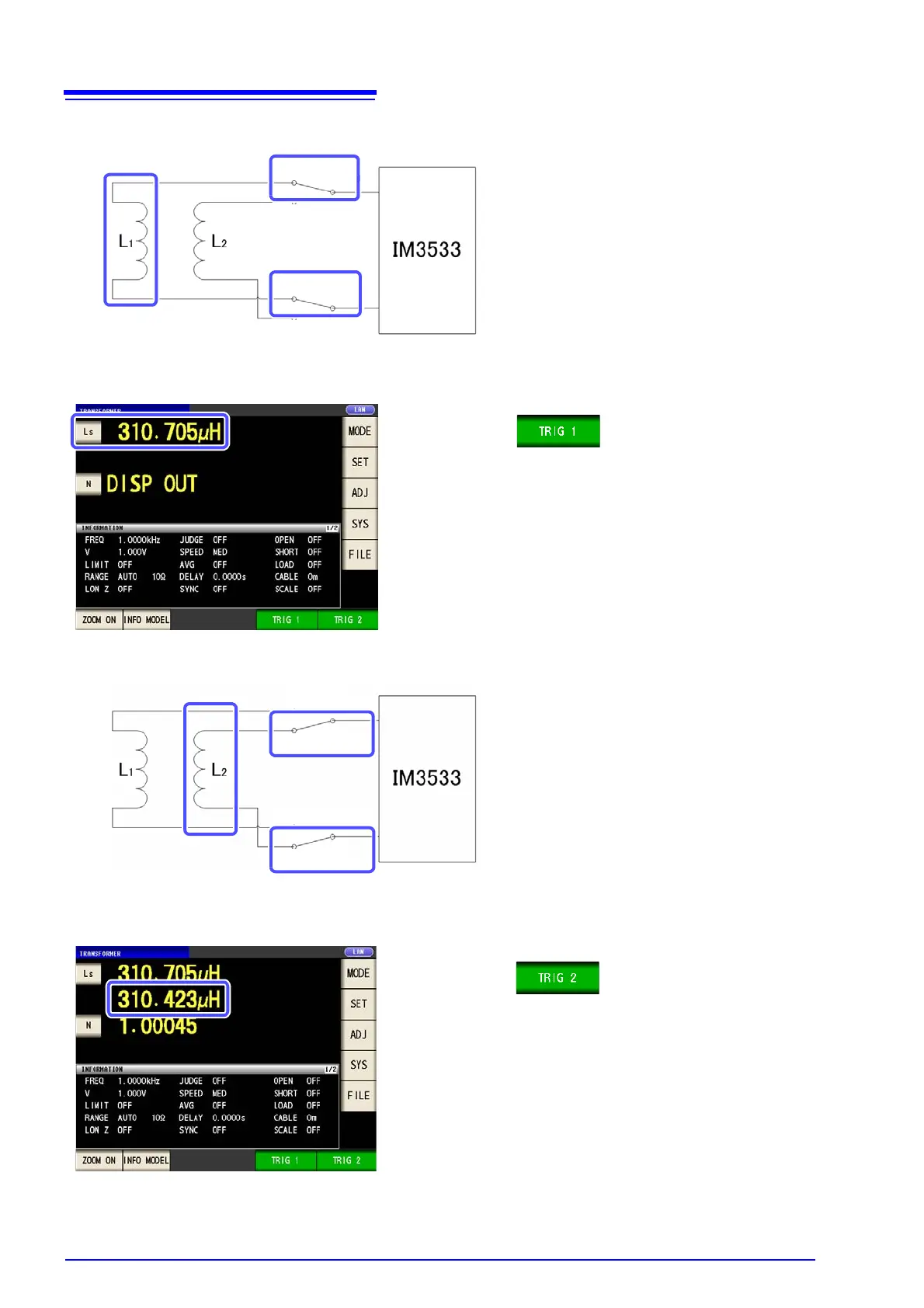

Wire together the primary side.
Primary side
Secondary side
Primary side
Secondary side
5
Execute the TRIG1 command.
Touch and measure the primary
side of the transformer.
6
Wire together the secondary side.
Primary side
Secondary side
Primary side
Secondary side
7
Execute the TRIG2 command.
Touch and measure the secondary
side of the transformer.
