4.2 Setting Basic Settings of Measurement Conditions
61
4
Chapter 4 LCR Function
Select the trigger type.
3
Internal trigger
Automatically repeats mea-
surement.
External trigger
Input the trigger manually via
EXT I/O or from the interface.

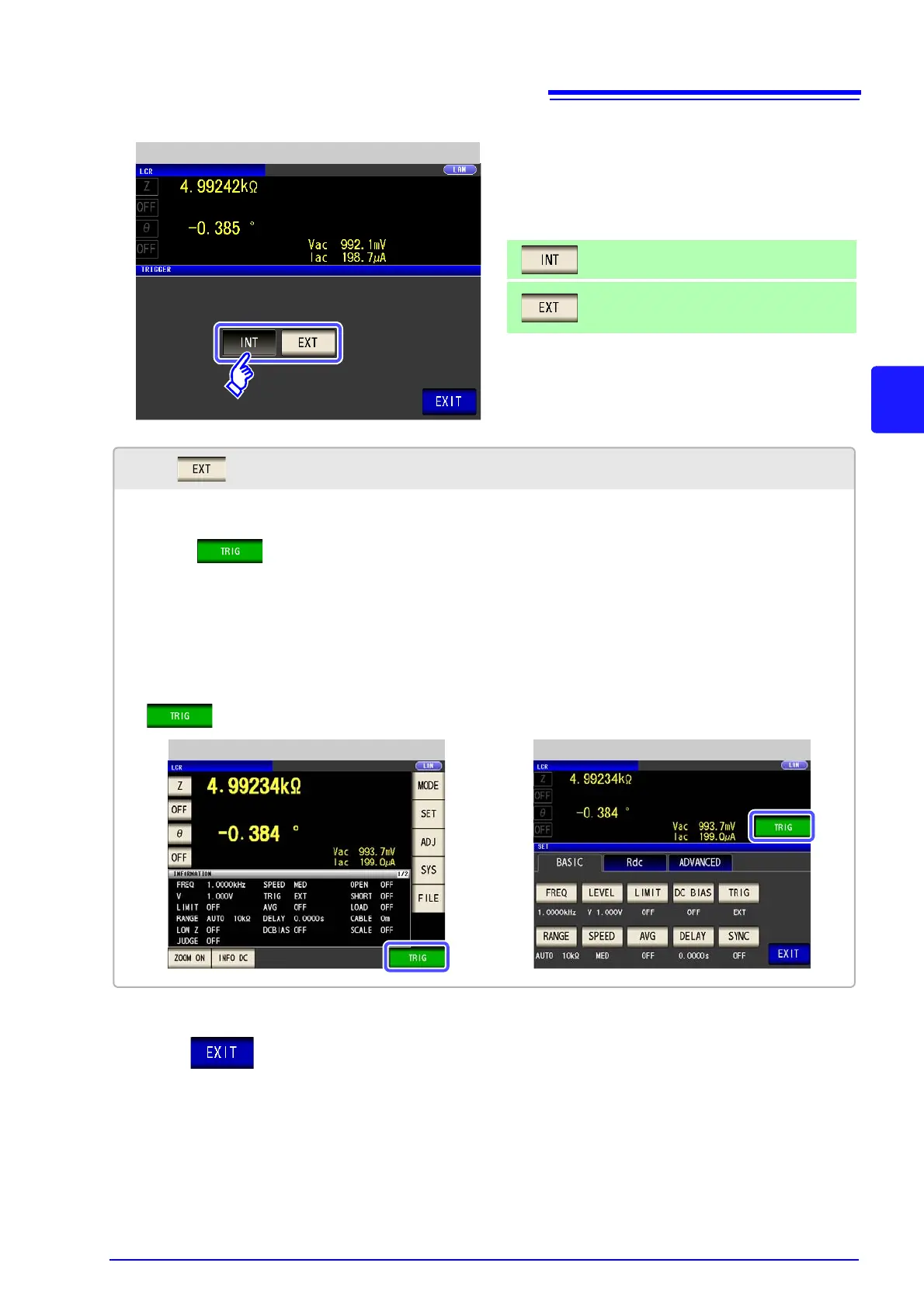

Trigger Setting
is displayed on the screen.
When External Trigger When External Trigger
• Press on the screen to manually input a trigger: Measurement is performed once.
• Input via EXT I/O: Measurement is performed once each time a negative logic pulse signal is applied.
See "Connector Type and Signal Pinouts" (p. 310)
• Input from interface: Measurement is performed once when *TRG is transmitted.
See LCR Application Disk - Communication Commands
When is selected
There are the following three types of input method for a trigger.
4
Press to close the setting screen.
