4.2 Setting Basic Settings of Measurement Conditions
67
4
Chapter 4 LCR Function
4
Range Selection
Set the test range according to the combined impedance value
of the sample to be tested and the test cables.
Test range
Accuracy
guaranteed range
AUTO Ranging Range
100 M 8 M to 200 M 8 M or more
10 M 800 k to 100 M 800 k to 10 M
1 M 80 k to 10 M 80 k to 1 M
100 k 8 k to 1 M 8 k to 100k
10 k 800  to 100 k 800  to 10 k
1 k 80  to 10 k 80  to 1 k
100  8  to 100  8  to 100 
10  800 m to 10  800 m to 10 
1  80 m to 1 80 m to 1 
100 m 10 m to 100 m 0  to 100 m

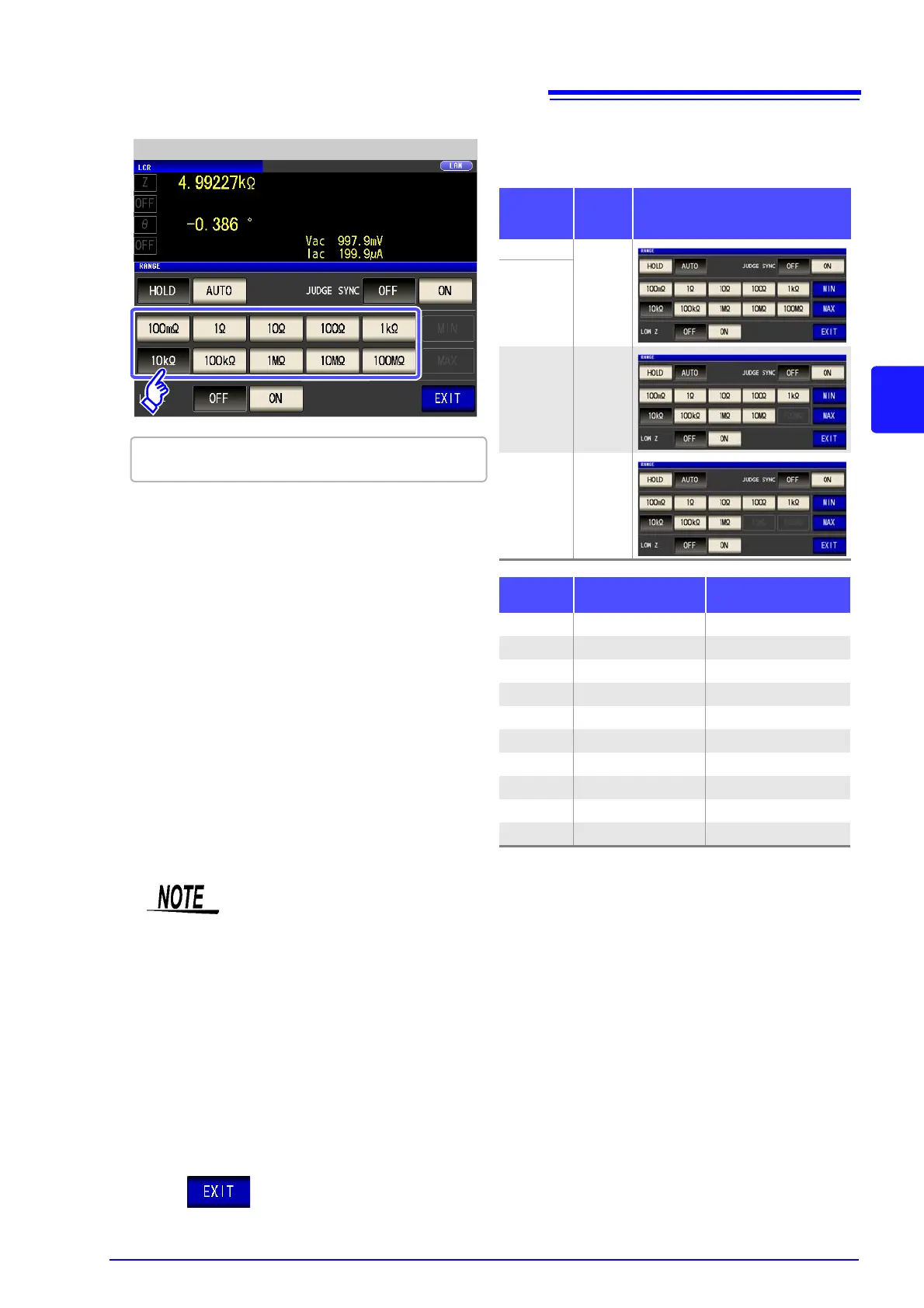

To select the measurement range.
The ranges that can be set vary with the frequency.
Frequency
Select-
able
ranges
Range Settings screen
DC
Entire
range
0.001 Hz
to
10.000 kHz
10.001 kHz
to
100.00 kHz
100 m
to
10 M

100.01 kHz
to
200.00 kHz
100 m
to
1 M
• The guaranteed accuracy range varies depending on the measurement conditions.
See Check the accuracy assured ranges in "14.2 Measurement Range and Accuracy" (p. 342)
• Changing the set range when auto ranging is enabled automatically enables the HOLD
setting.
• The measurement range is determined according to the test range setting.If the display
for the measured value shows "OVER FLOW" or "UNDER FLOW", that means that mea-
surement cannot be performed using the currently set test range. Either you should set
AUTO ranging so as to select the most suitable test range automatically, or you should set
a more suitable test range manually. If a measurement result is outside the display range
(p. 337), "DISP OUT" is displayed.
• The guaranteed accuracy range is for the measurement values before compensation.
• The AUTO ranging range is the range within which the AUTO range is switched. When
the AUTO range limit function is enabled, the range will not be switched outside the
defined limit range.
5
Press to close the setting screen.
