4.2 Setting Basic Settings of Measurement Conditions
78
• When the trigger synchronous output function is set to ON, the measurement time will
increase due to the incorporation of a wait time between output of the measurement sig-
nal and data acquisition.
See"14.3 About Measurement Times and Measurement Speed" (p. 350)
• When the trigger synchronous output function is set to ON, the set level may be output
momentarily if a measurement condition is changed.
• The measurement signal is output when the trigger signal is input and stops after mea-
surement ends.
• When the contact check timing is set to either or for the contact check
function, the trigger synchronous output function is automatically turned on. Set the time
to wait until the start of measurement.
See "4.5.4 Checking Contact Defects and the Contact State (Contact Check Function)" (p. 132)
• In CONTINUOUS measurement mode, the measurement signal stops after measure-
ment of the last panel ends.

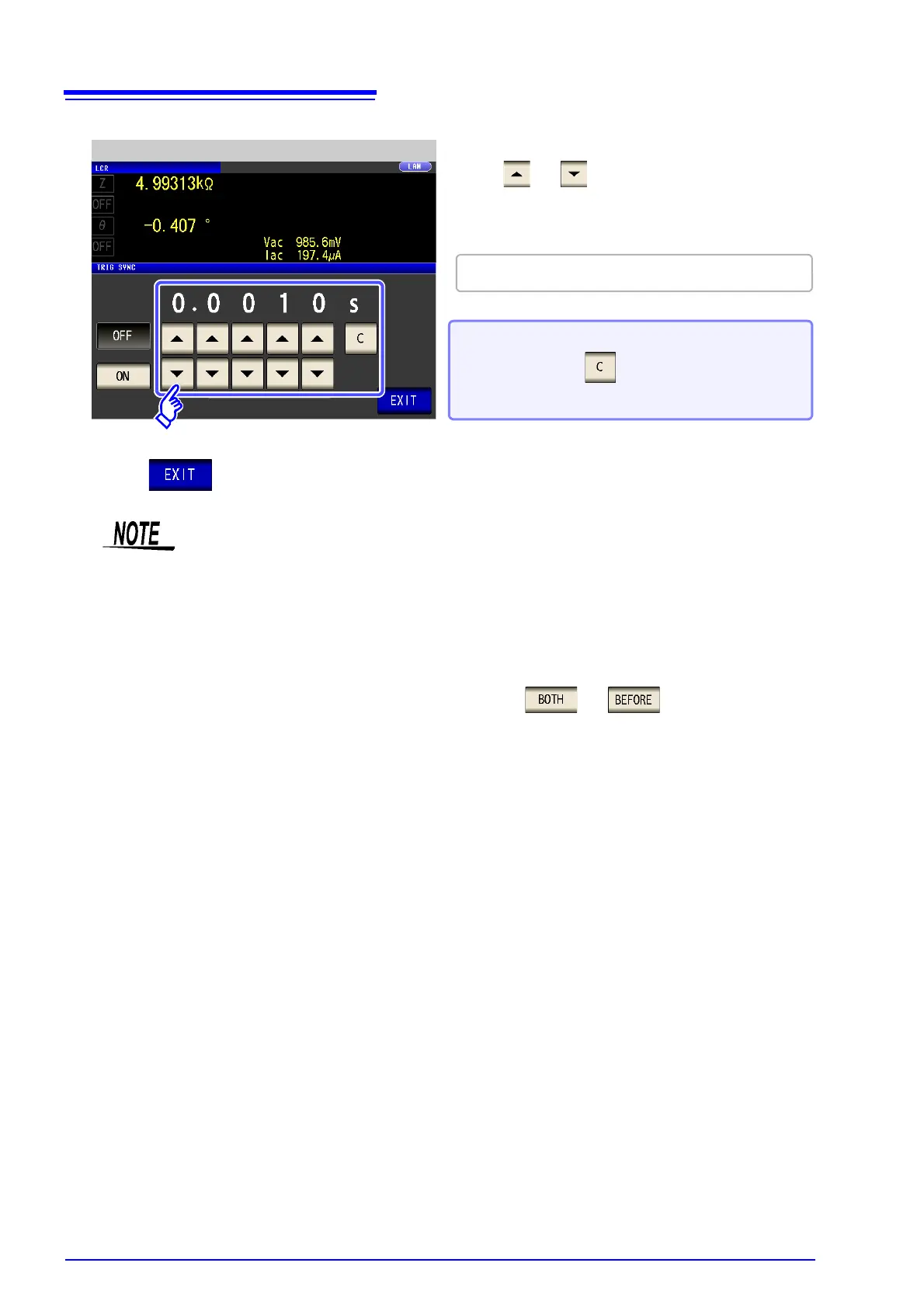

Use or to set the wait time from after
the measurement signal is output by applying
a trigger to the start of measurement.
4
Settable range: 0.0010 s to 9.9999 s
When you want to return the time to the ini-
tial state: Press .
The set time is set to 0.0010 s.
Trigger Sync Setting
5
Press to close the setting screen.
