HP 830 Series User Manual

94
b. Click Add.
The page in Figure 82 appears.
c. Enter 1-rmon in the Owner field and select the box before Log.
d. Click Apply.
The page displays the event entry, and you can see that the entry index of the new event is 1,
as shown in Figure 83.

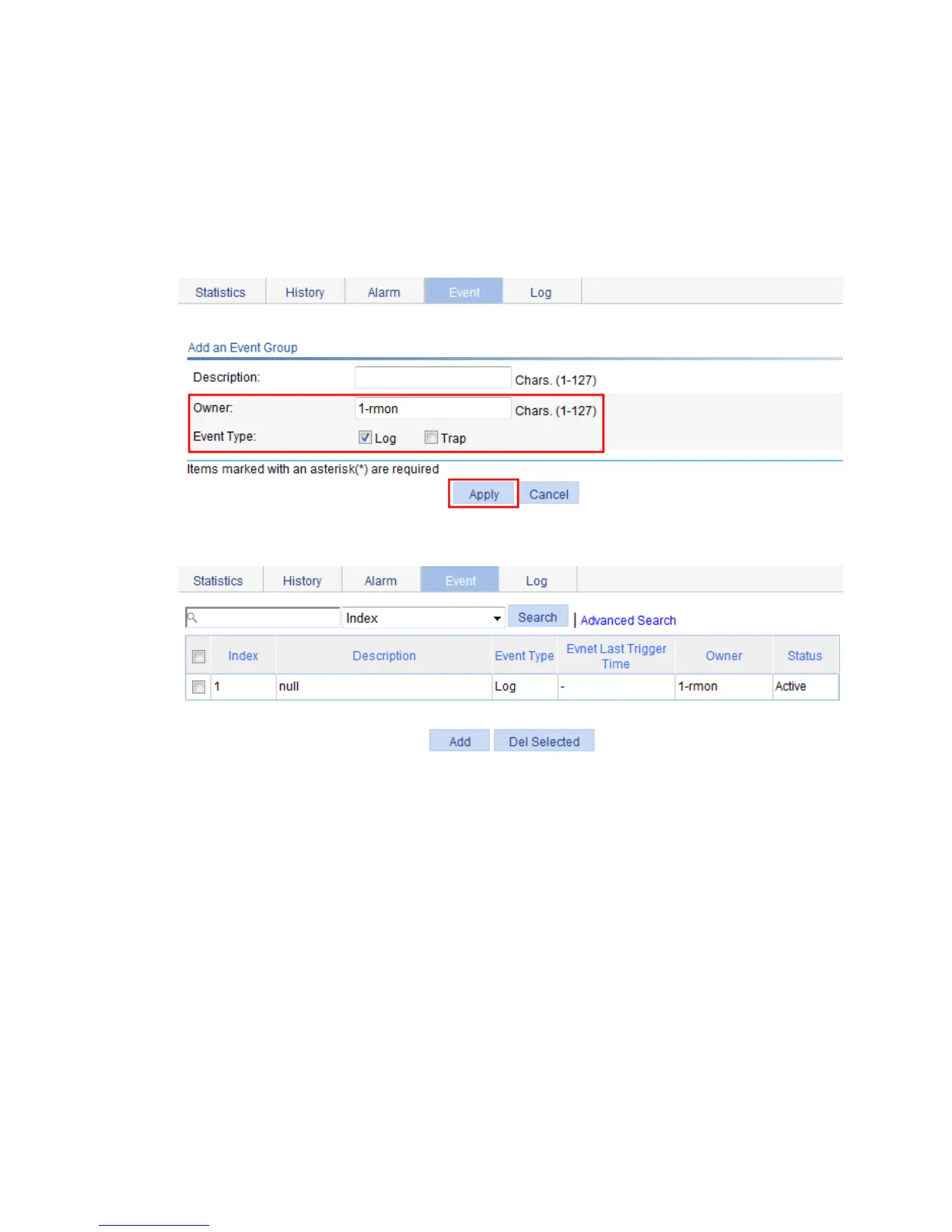

Figure 82 Configuring an event group
Figure 83 Displaying the index of an event entry
4. Configure an alarm group to sample received bytes on GigabitEthernet 1/0/1. When the
received bytes exceed the rising or falling threshold, logging is enabled:
a. Click the Alarm tab.
b. Click Add.
The page in Figure 84 appears.
c. Select Number of Received Bytes from the Static Item list, select GigabitEthernet1/0/1 from the
Interface Name list, enter 10 in the Interval field, select Delta from the Simple Type list, enter
1-rmon in the Owner field, enter 1000 in the Rising Threshold field, select 1 from the Rising
Event list, enter 100 in the Falling Threshold field, and select 1 from the Falling Event list.
d. Click Apply.
