f. Click Apply.
A configuration progress dialog box appears.
g. Click Close after the configuration process is complete.

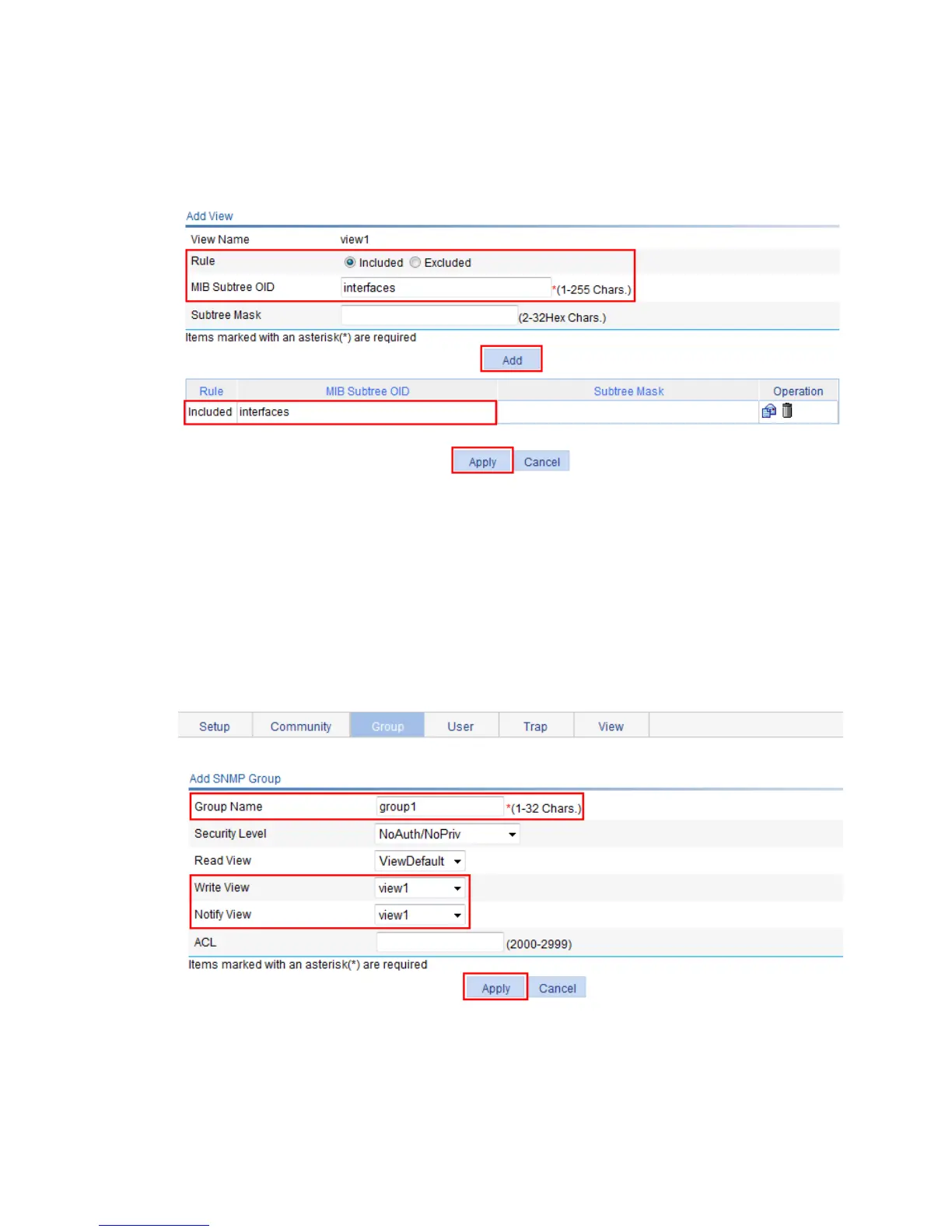

Figure 112 Creating an SNMP view (2)
3. Configure an SNMP group:
a. Click the Group tab.
b. Click Add.
The page in Figure 113 ap
pears.
c. Enter group1 in the Group Name field, select view1 from the Read View list, and select view1
from the Write View list.
d. Click Apply.
Figure 113 Creating an SNMP group
4. Configure an SNMP user:
a. Click the User tab.
b. Click Add.
The page in Figure 114 ap
pears.
