153

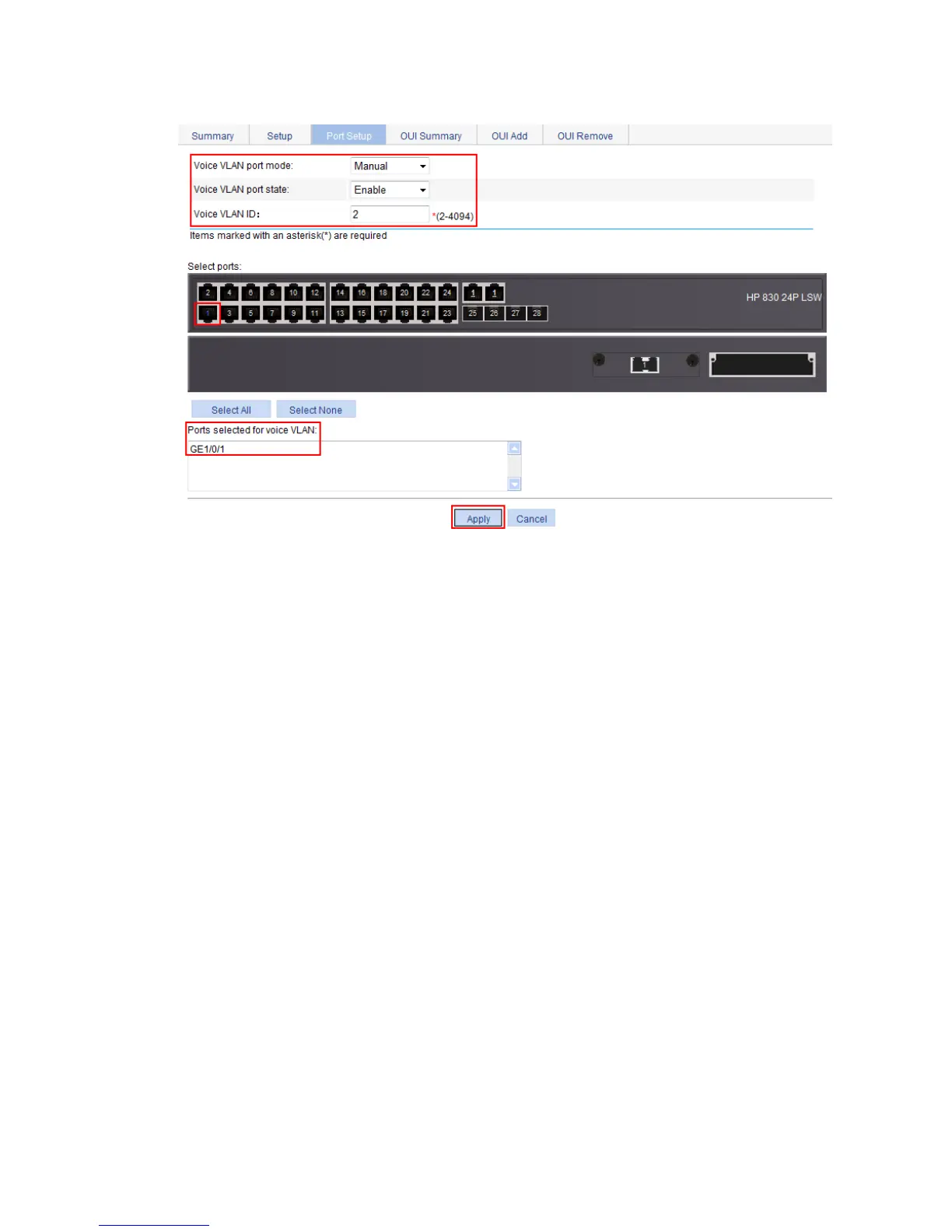

Figure 151 Configuring voice VLAN on GigabitEthernet 1/0/1

5. Add OUI addresses to the OUI list:

a. Click the OUI Add tab.

b. Enter OUI address 0011-2200-0000.

c. Select FFFF-FF00-0000 as the mask.

d. Enter description string test.

e. Click Apply.
