152

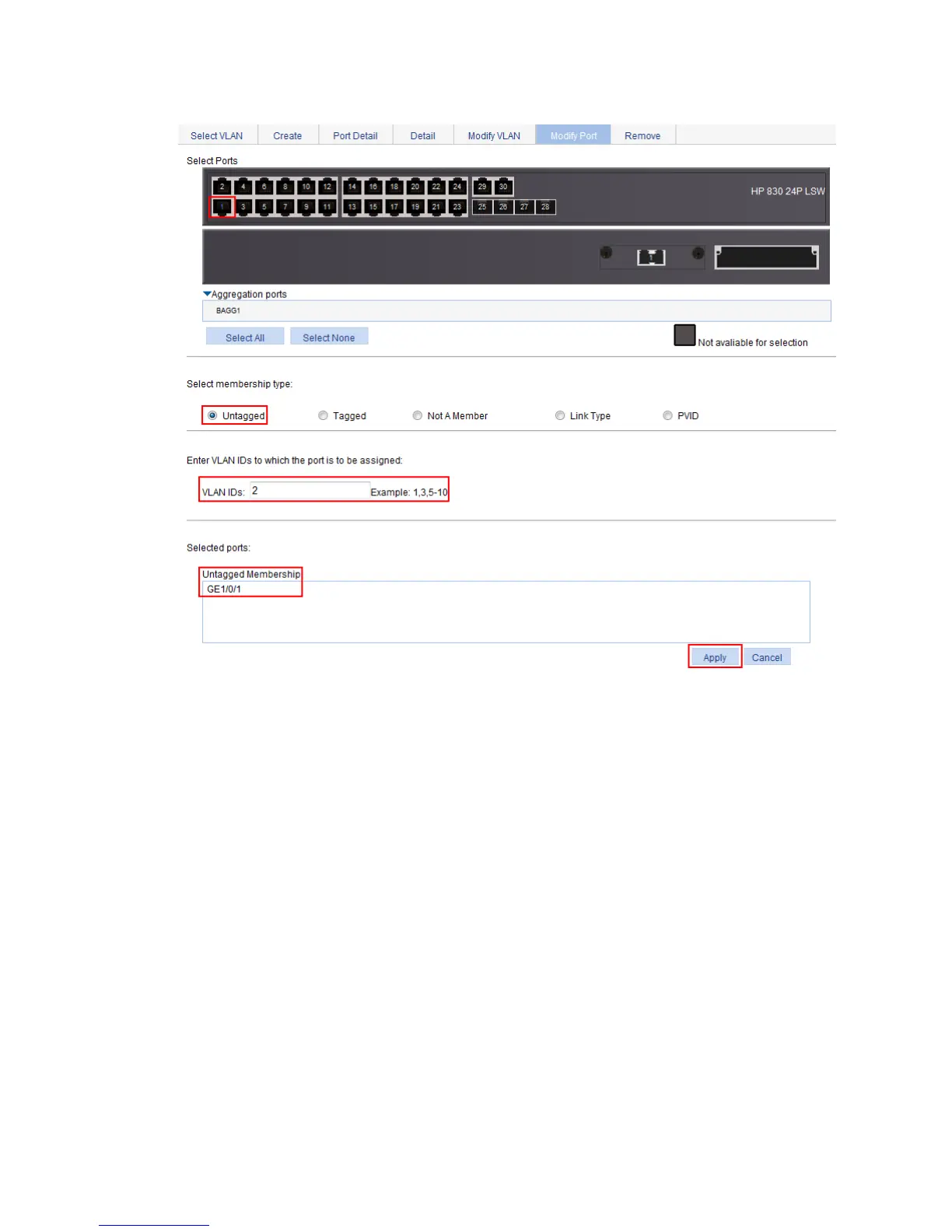

Figure 150 Assigning GigabitEthernet 1/0/1 to VLAN 2 as an untagged member
4. Configure voice VLAN on GigabitEthernet 1/0/1:
a. Select Network > Voice VLAN from the navigation tree.
b. Click the Port Setup tab.
c. Select Manual from the Voice VLAN port mode list.
d. Select Enable from the Voice VLAN port state list.
e. Enter 2 in the VLAN IDs field.
f. Select GigabitEthernet 1/0/1 from the chassis front panel.
g. Click Apply.
