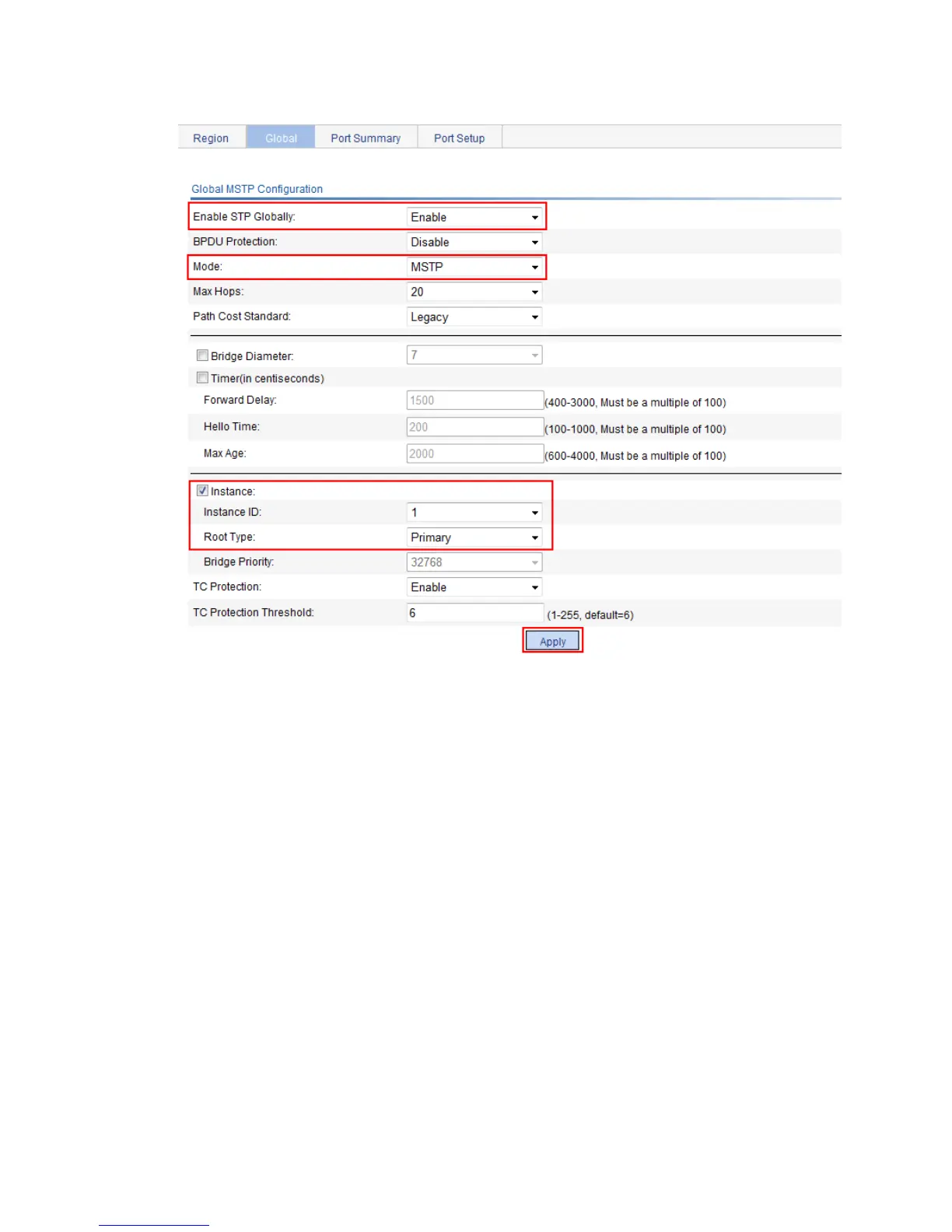

Figure 169 Configuring MSTP globally (on Switch A)
Configuring Switch B
1. Configure an MST region. (The procedure here is the same as that of configuring an MST region
on Switch A.)
2. Configure MSTP globally:
a. Select Network > MSTP from the navigation tree.
b. Click the Global tab to enter the page for configuring MSTP globally.
c. Select Enable from the Enable STP Globally list.
d. Select MSTP from the Mode list.
e. Select the box to the left of Instance.
f. Set the Instance ID field to 2.
g. Set the Root Type field to Primary.
h. Click Apply.
Configuring Switch C
1. Configure an MST region. (The procedure here is the same as that of configuring an MST region
on Switch A.)
2. Configure MSTP globally:
a. Select Network > MSTP from the navigation tree.
