b. Click Global to enter the page for configuring MSTP globally.
c. Select Enable from the Enable STP Globally list.
d. Select MSTP from the Mode list.
e. Select the box to the left of Instance.
f. Set the Instance ID field to 3.
g. Set the Root Type field to Primary.
h. Click Apply.
Configuring Switch D
1. Configure an MST region. The procedure is the same as that of configuring an MST region on
Switch A.
2. Configure MSTP globally:
a. Select Network > MSTP from the navigation tree.
b. Click Global to enter the page for configuring MSTP globally.
c. Select Enable from the Enable STP Globally list.
d. Select MSTP from the Mode list.
e. Click Apply.

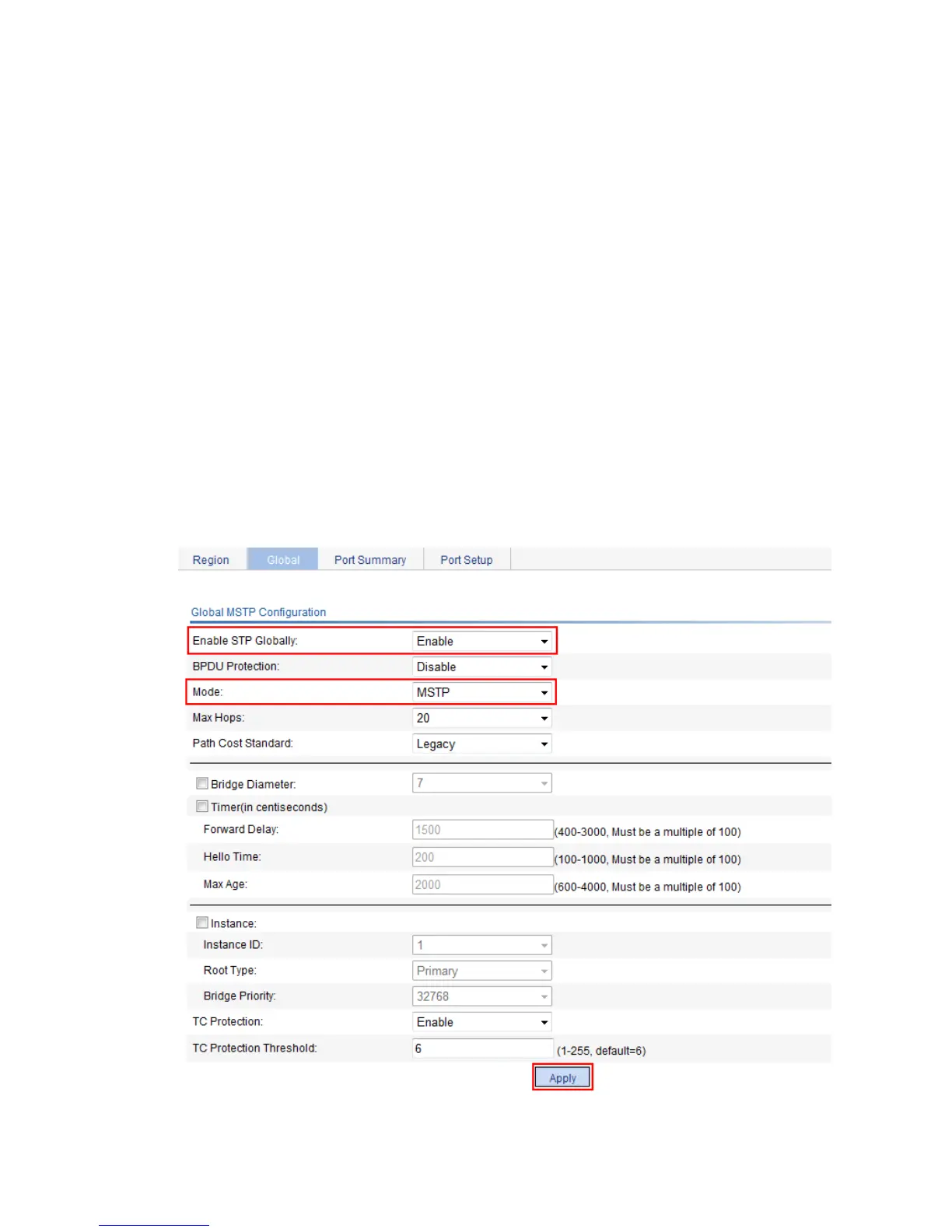

Figure 170 Configuring MSTP globally (on Switch D)
