222

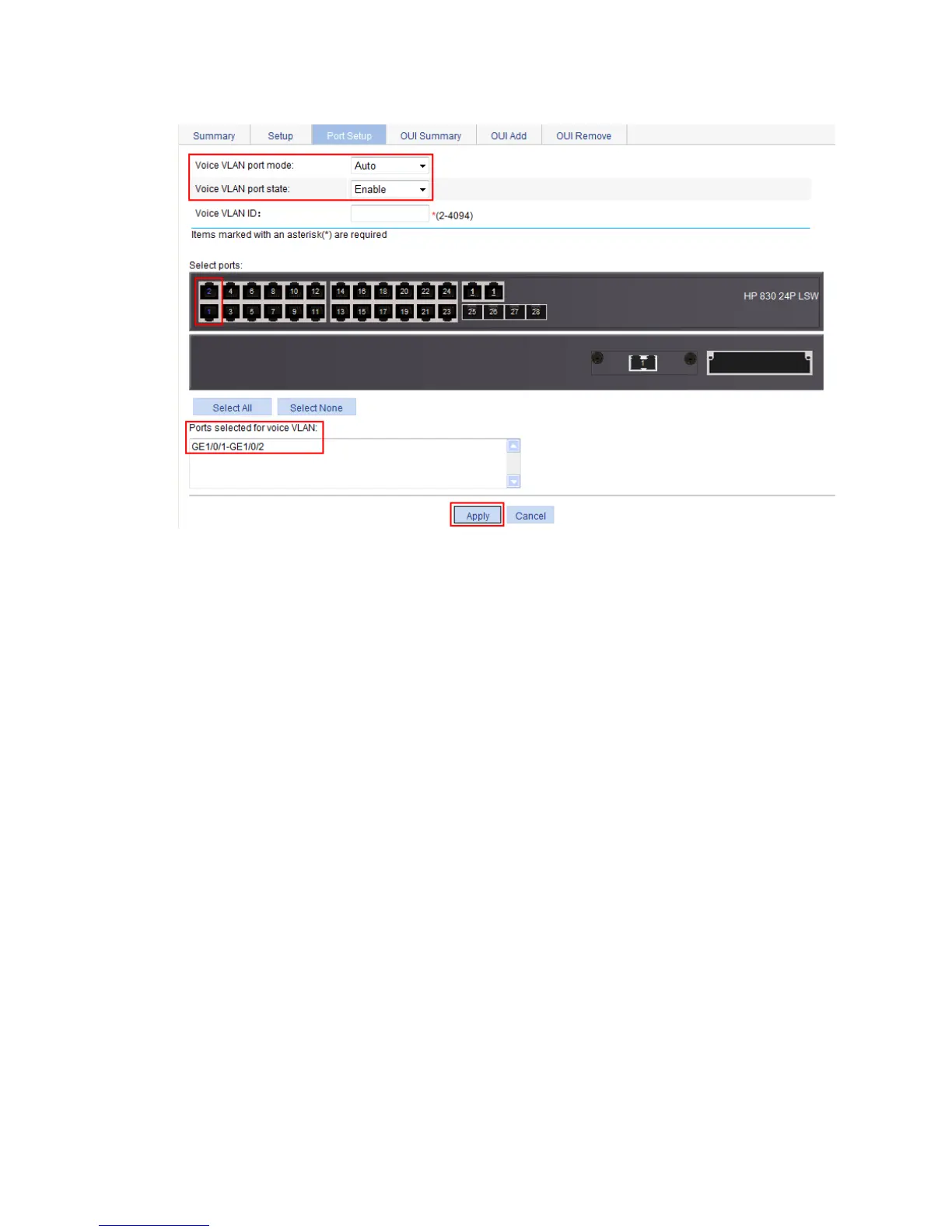

Figure 202 Configuring the voice VLAN function on ports
4. Enable LLDP on ports GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2. Skip this step if LLDP is
enabled (the default).
5. Set both the LLDP operating mode and the CDP operating mode to TxRx on ports GigabitEthernet
1/0/1 and GigabitEthernet 1/0/2:
a. Select Network > LLDP from the navigation tree.
By default, the Port Setup tab is displayed.
b. Select port GigabitEthernet1/0/1 and GigabitEthernet1/0/2.
c. Click Modify Selected.
The page shown in Figure 204 is displayed.
