Configuring Switch A
1. Create VLAN 100:
a. Select Network > VLAN from the navigation tree.
b. Click the Add tab.
c. Enter 100 for VLAN ID.
d. Click Create.

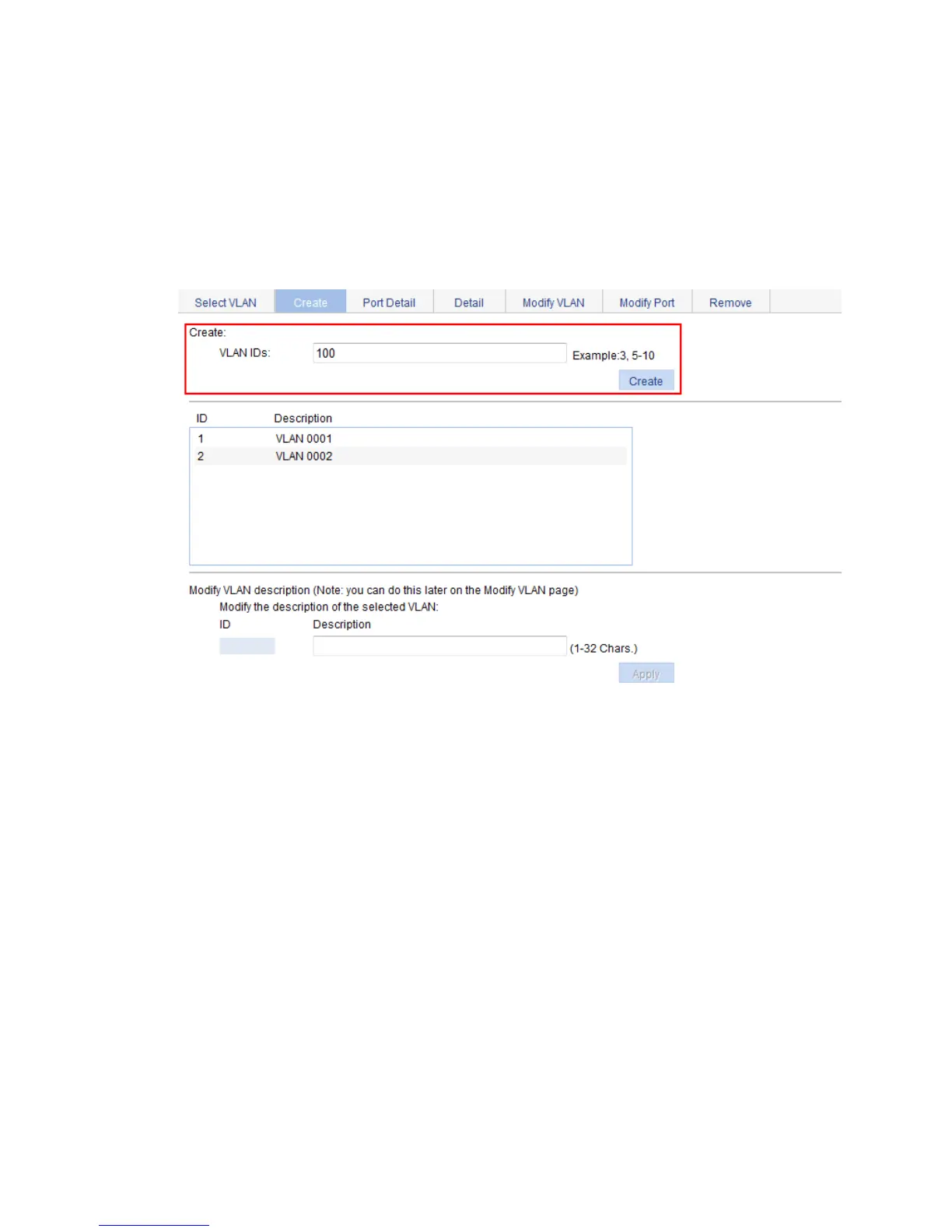

Figure 212 Creating VLAN 100
2. Add GigabitEthernet 1/0/1 to VLAN 100:
a. Click the Modify Port tab.
b. Select interface GigabitEthernet 1/0/1 in the Select Ports field.
c. Select the Untagged option in the Select membership type field.
d. Enter 100 for VLAN IDs.
e. Click Apply.
A configuration process dialogu box appears.
f. After the configuration process is complete, click Close.
