HP 830 Series User Manual

300

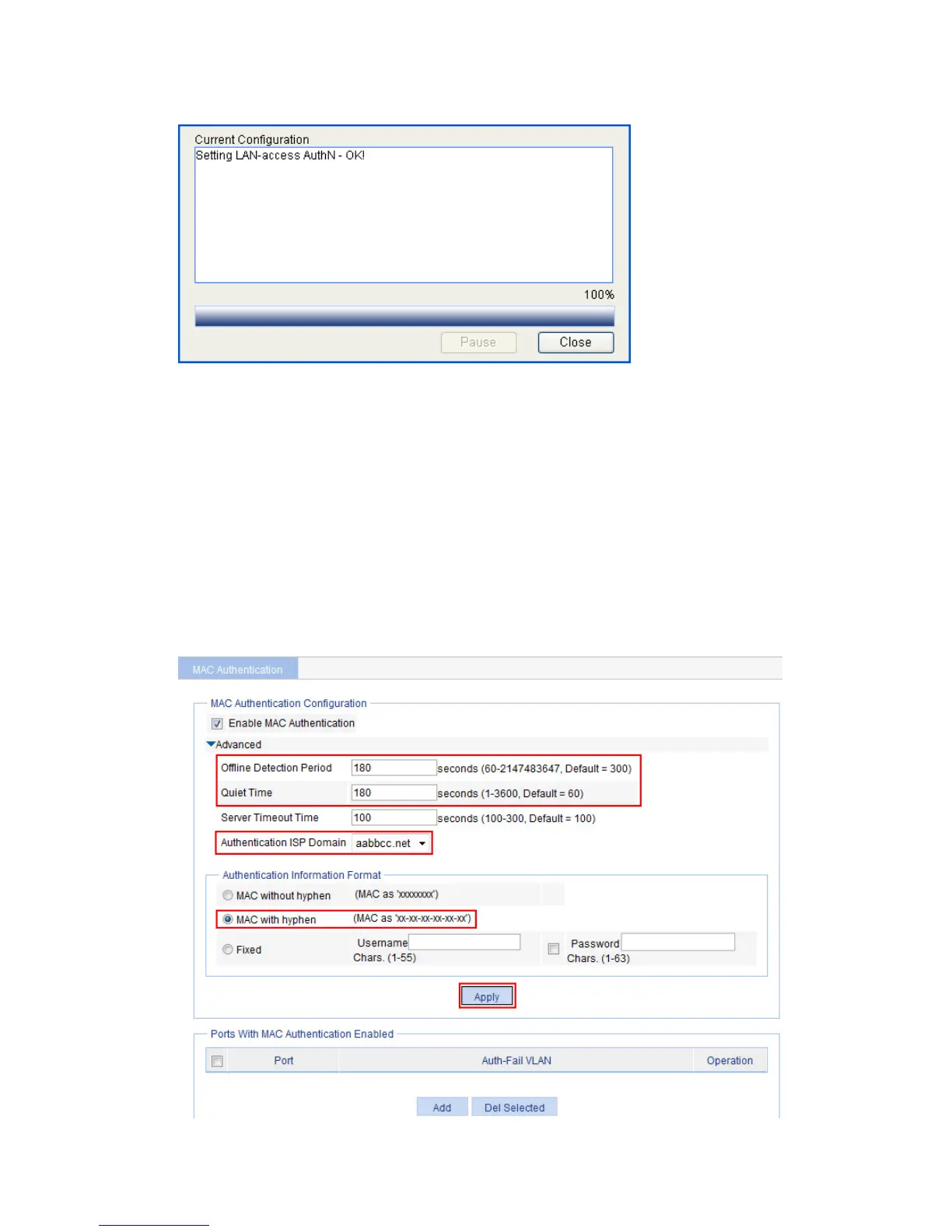

Figure 286 Configuration progress dialog box
Configuring MAC authentication
1. From the navigation tree, select Authentication > MAC Authentication.
The MAC Authentication page appears.
2. Select the Enable MAC Authentication box.
3. Click Advanced to configure advanced MAC authentication settings.
a. Set the offline detection period to 180 seconds, set the quiet timer to 180 seconds, and select
aabbcc.net from the Authentication ISP Domain list.
b. Select the MAC with hyphen option as the authentication information format.
4. Click Apply.
Figure 287 Configuring MAC authentication globally

HP 830 Series Specifications

General

Brand	HP
Model	830 Series
Category	Switch
Language	English
