HP 830 Series User Manual

305

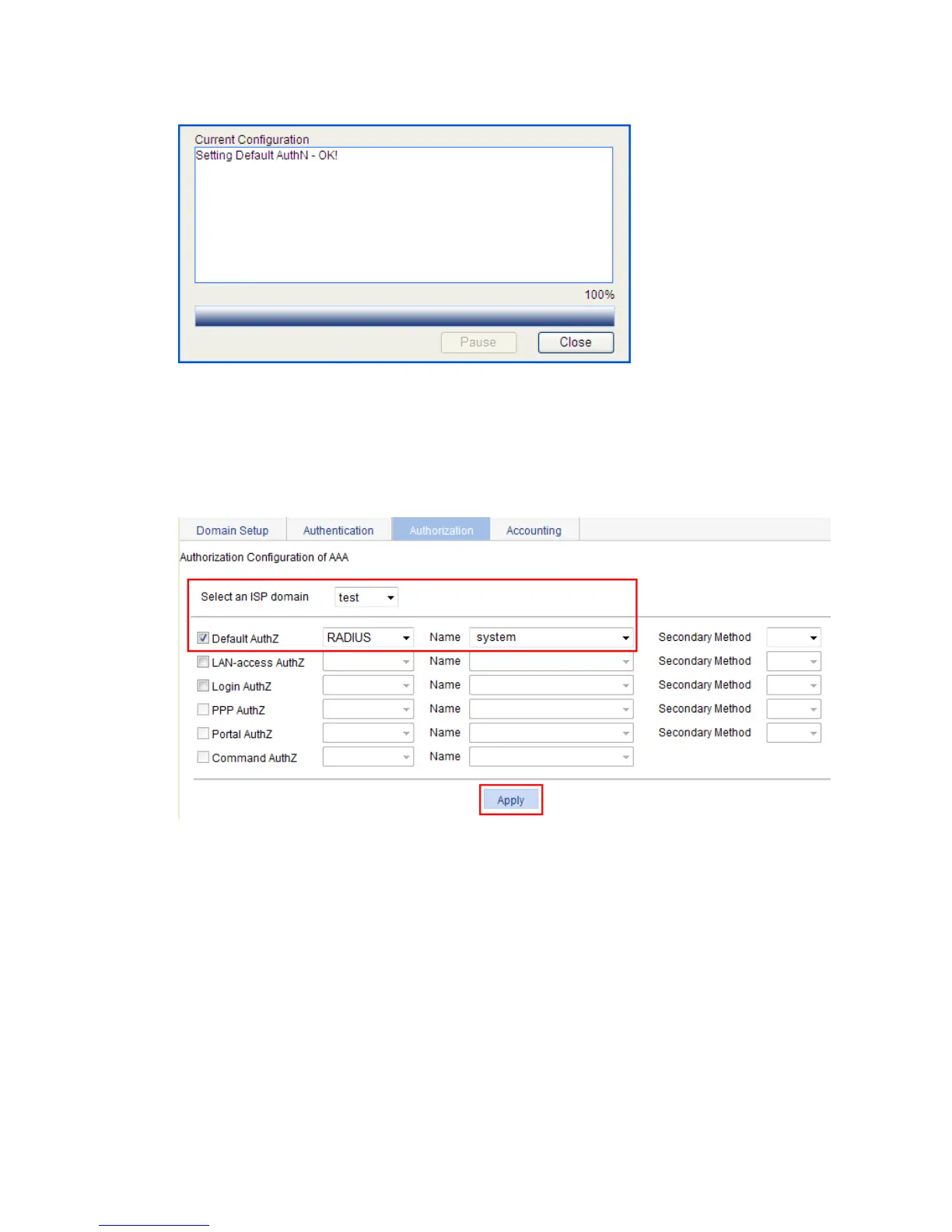

Figure 295 Configuration progress dialog box
7. After the configuration process is complete, click Close.
8. Click the Authorization tab.
9. Select the ISP domain test, the Default AuthZ box, authorization mode RADIUS, and authorization
scheme system from the Name list.
Figure 296 Configuring the authorization method for the ISP domain
10. Click Apply.
A configuration progress dialog box appears.
11. After the configuration process is complete, click Close.
12. Click the Accounting tab.
13. Select the ISP domain test, the Default Accounting box, accounting method RADIUS, and
accounting scheme system from the Name list.

HP 830 Series Specifications

General

Brand	HP
Model	830 Series
Category	Switch
Language	English
