306

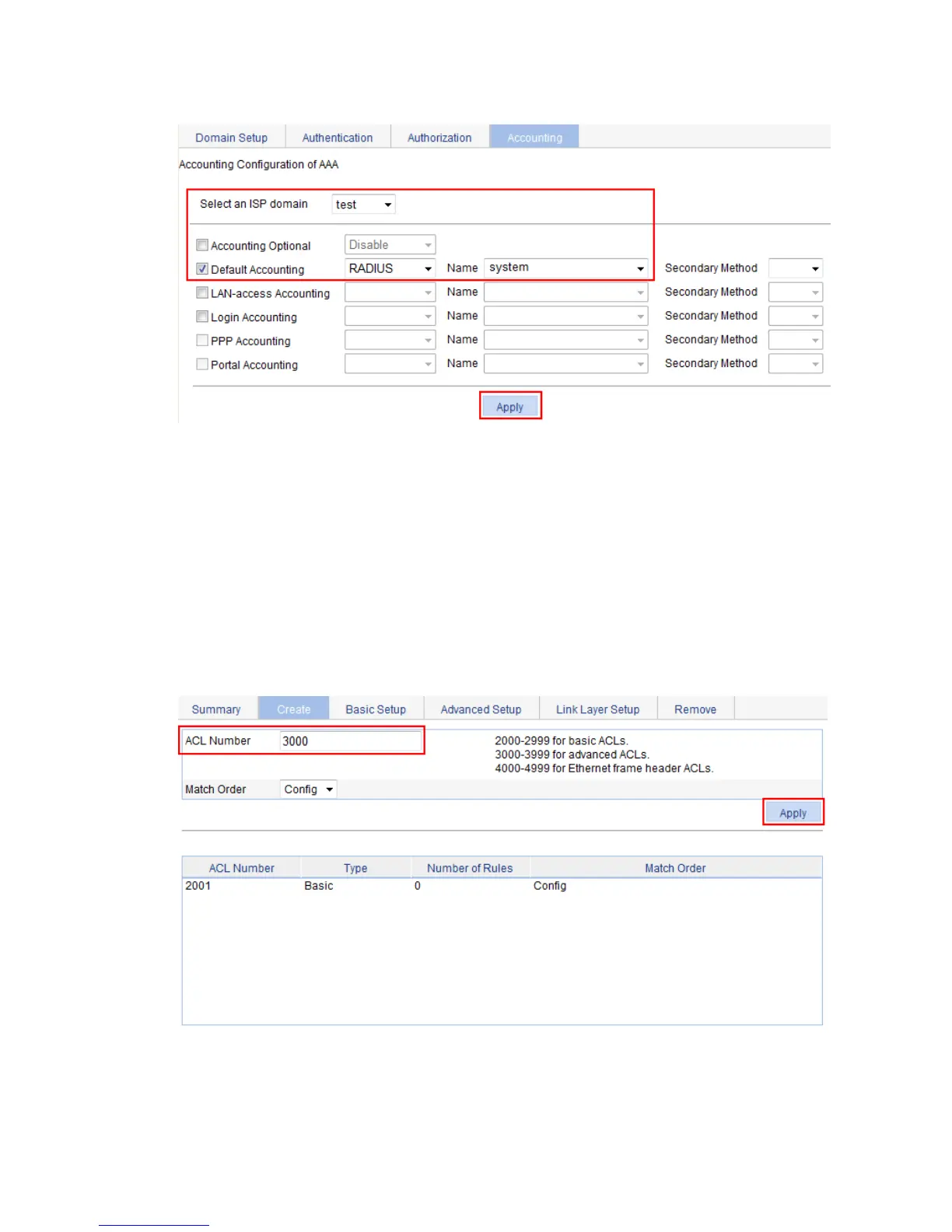

Figure 297 Configuring the accounting method for the ISP domain
14. Click Apply.
A configuration progress dialog box appears.
15. After the configuration process is complete, click Close.
Configuring an ACL
1. From the navigation tree, select QoS > ACL IPv4.
The Create tab appears.
2. Enter the ACL number 3000.
3. Click Apply.
Figure 298 Creating ACL 3000
4. Click the Advanced Setup tab to configure an ACL rule:
a. Select the ACL 3000, select the Rule ID box, and enter the rule ID 0.
b. Select the action Deny.
