308

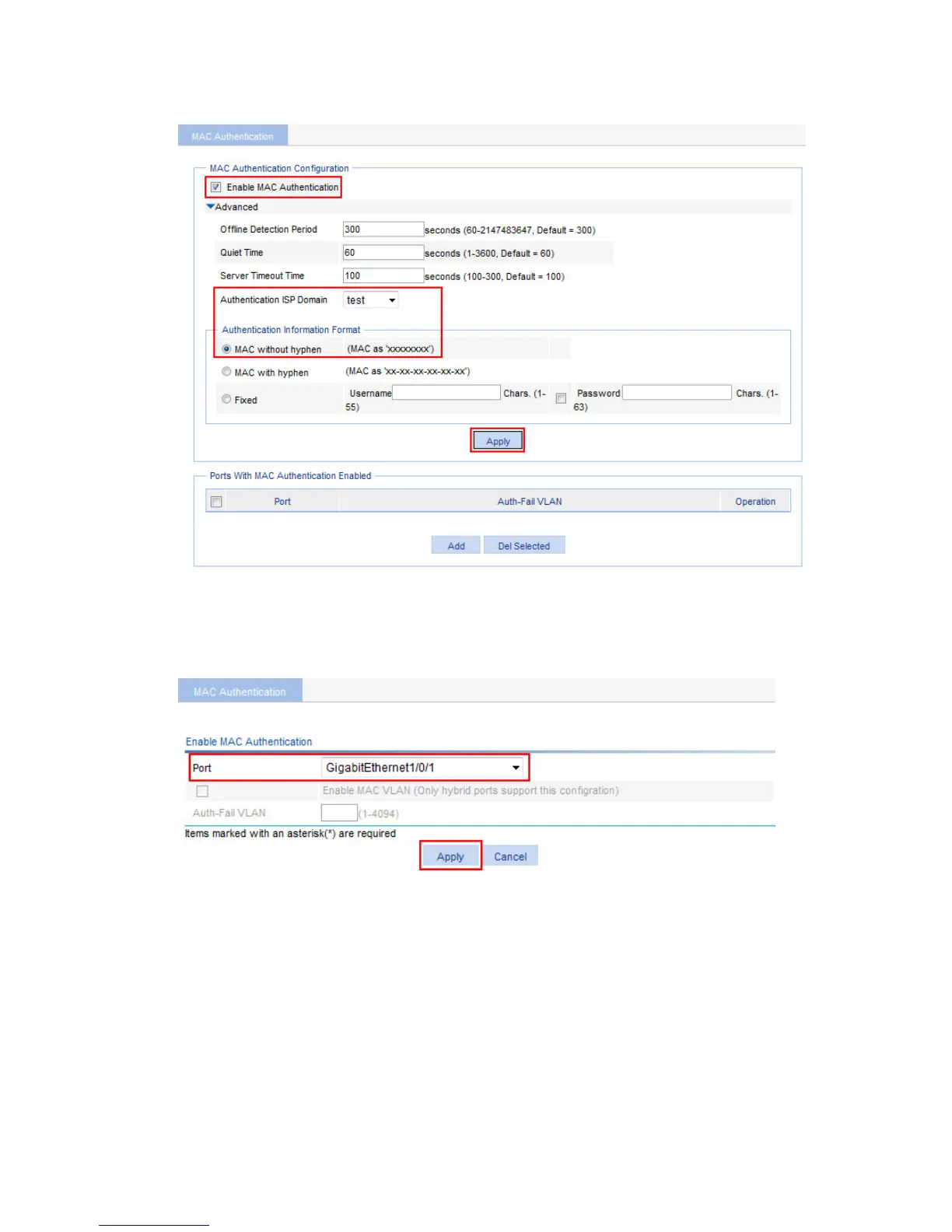

Figure 300 Configuring global MAC authentication settings
5. In the Ports With MAC Authentication Enabled area, click Add.
6. Select the port GigabitEthernet1/0/1 and click Apply.
Figure 301 Enabling MAC authentication for port GigabitEthernet 1/0/1
Verifying the configuration
# After the host passes the authentication, ping the FTP server from the host to see whether ACL 3000
assigned by the authentication server takes effect.
C:\>ping 10.0.0.1
Pinging 10.0.0.1 with 32 bytes of data:
Request timed out.
Request timed out.
Request timed out.
