HP 830 Series User Manual

319
3. Click Apply.

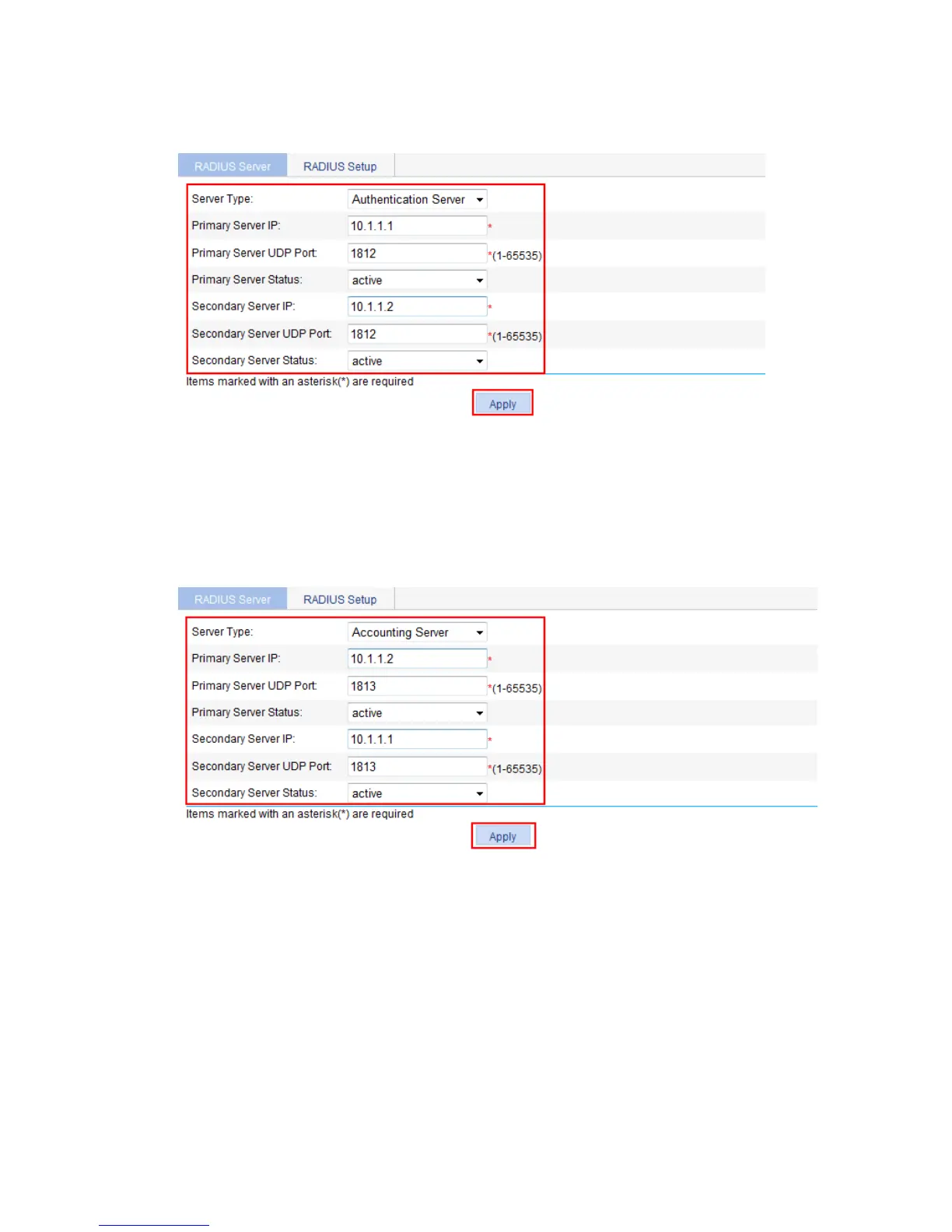

Figure 309 Configuring RADIUS authentication servers
4. On the RADIUS Server tab, select Accounting Server from the Server Type list, enter 10.1.1.2 in the
Primary Server IP box and 1813 in the Primary Server UDP Port box, select active from the Primary
Server Status list, enter 10.1.1.1 in the Secondary Server IP box and 1813 in the Secondary Server
UDP Port box, and select active from the Secondary Server Status list.
5. Click Apply.
Figure 310 Configuring RADIUS accounting servers
6. Click the RADIUS Setup tab.
7. Select standard from the Server Type list, select the Authentication Server Shared Key and
Accounting Server Shared Key options, and enter abc in the four shared key boxes, 5 as the server
timeout time and maximum number of request transmission attempts, respectively, and 15 as the
real-time accounting interval.
8. Click Apply.
