330

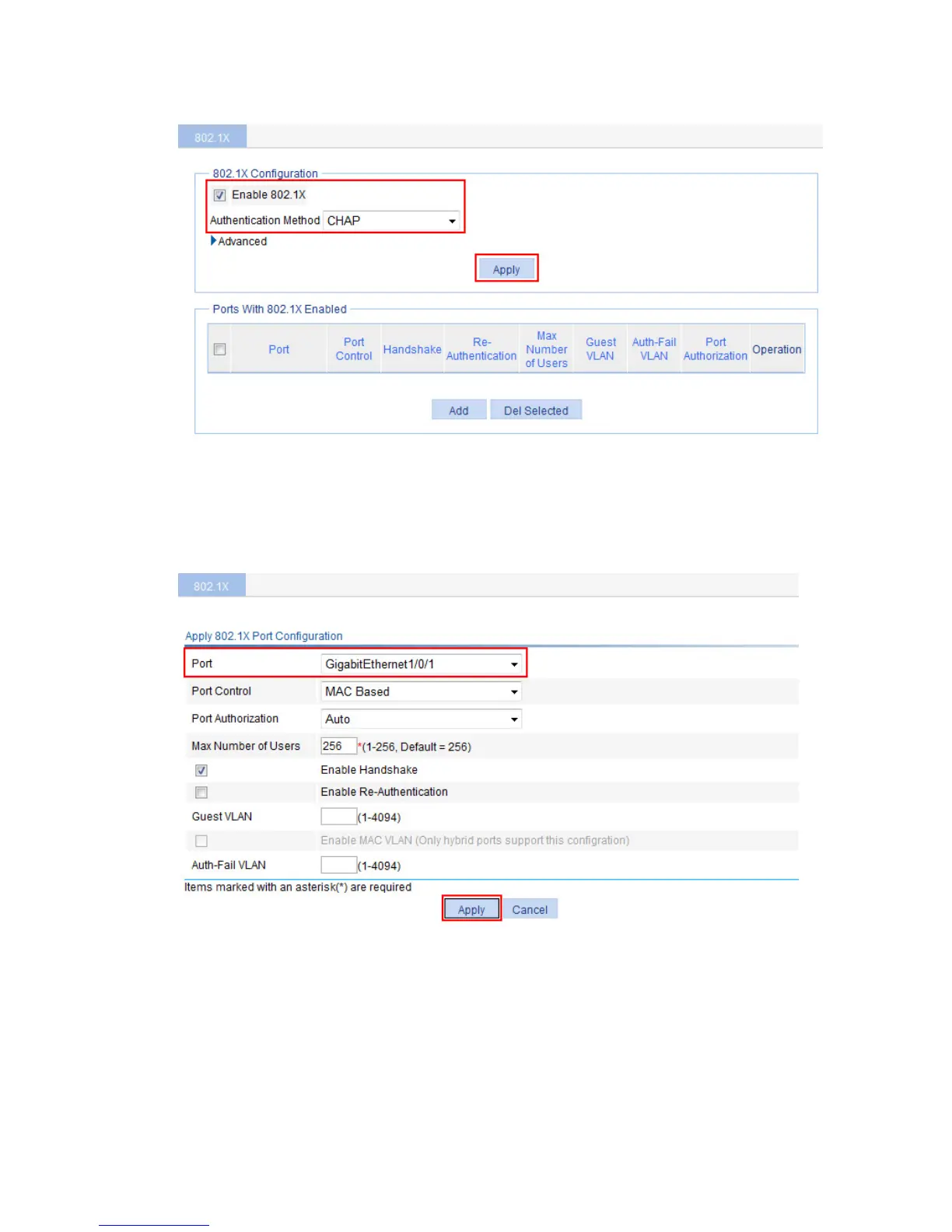

Figure 328 Global 802.1X globally
5. In the Ports With 802.1X Enabled area, click Add.
6. Select GigabitEthernet1/0/1 from the Port list.
7. Click Apply.
Figure 329 802.1X configuration of GigabitEthernet 1/0/1
Verifying the configuration
After the user passes authentication and is online, use the ping command to test whether ACL 3000 takes
effect.
1. From the navigation tree, select Network > Diagnostic Tools.
The IPv4 Ping page appears.
2. Enter the destination IP address 10.0.0.1.
3. Click Start to start the ping operation.
