348

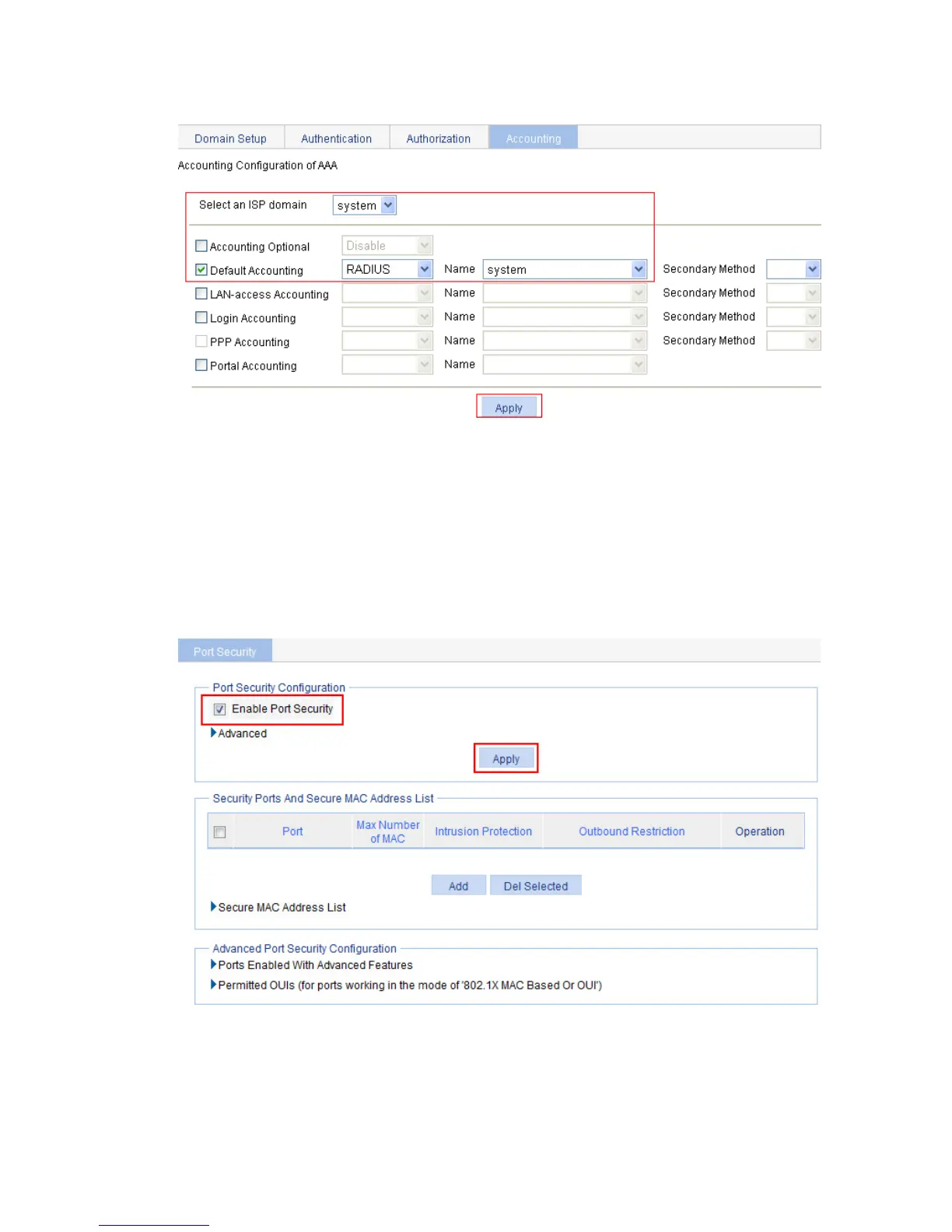

Figure 353 Configuring AAA accounting
12. Click Apply.
A configuration progress dialog box appears.
13. When the configuration process is complete, click Close.
Configuring port security
1. From the navigation tree, select Authentication > Port Security.
2. Select the Enable Port Security box, and click Apply.
Figure 354 Configuring global port security settings
3. In the Advanced Port Security Configuration area, click Ports Enabled With Advanced Features,
and then click Add.
4. Select GigabitEthernet1/0/1, and select the security mode 802.1X MAC Based Or OUI.
5. Click Apply.
