347
A configuration progress dialog box appears.
5. When the configuration process is complete, click Close.

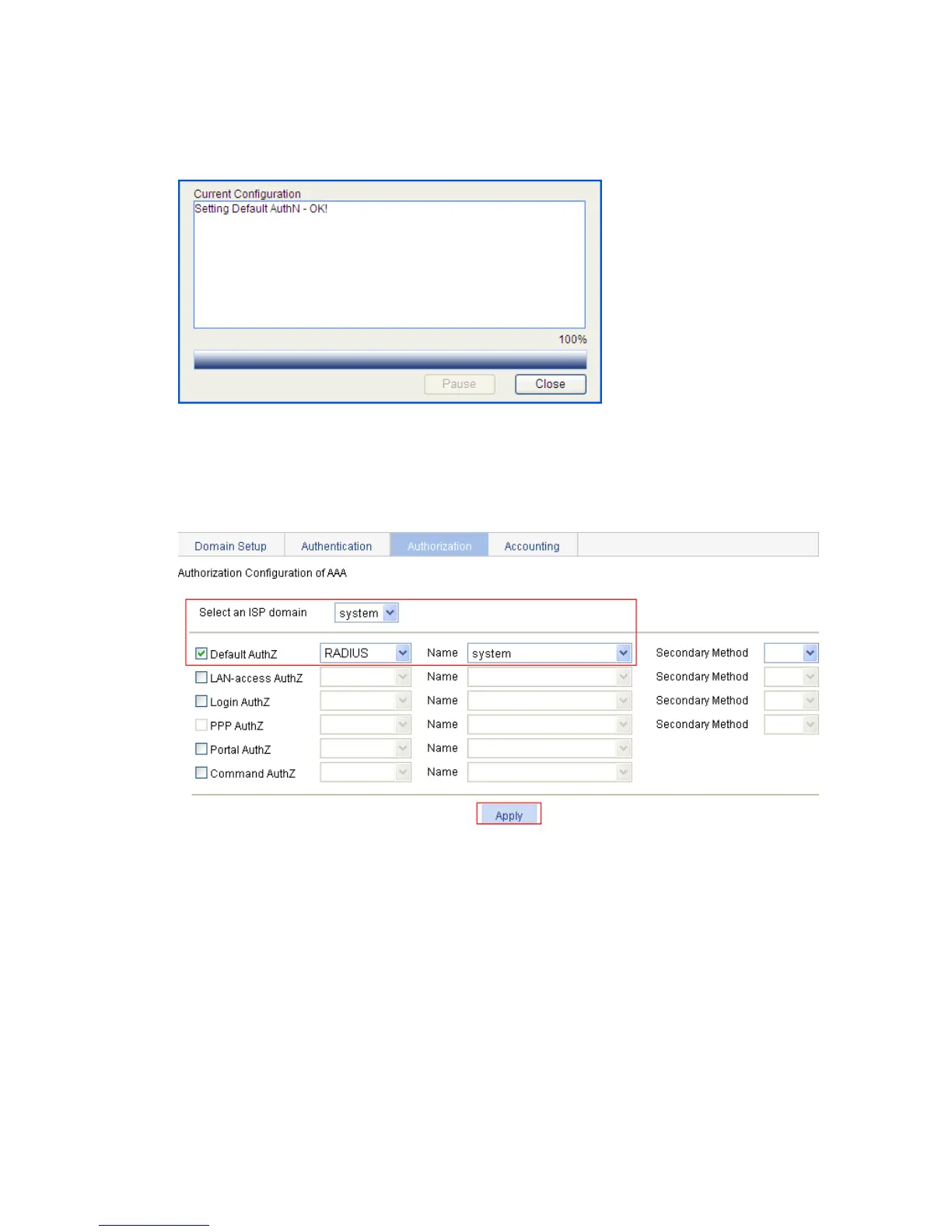

Figure 351 Configuration progress dialog box
6. Click the Authorization tab.
7. Select the ISP domain system, the Default AuthZ box, authorization method RADIUS from the list,
and authorization scheme system from the Name list.
Figure 352 Configuring AAA authorization
8. Click Apply.
A configuration progress dialog box appears.
9. When the configuration process is complete, click Close.
10. Click Accounting tab.
11. Select the ISP domain system, the Default Accounting box, accounting method RADIUS, and
accounting scheme system from the Name list.
