346

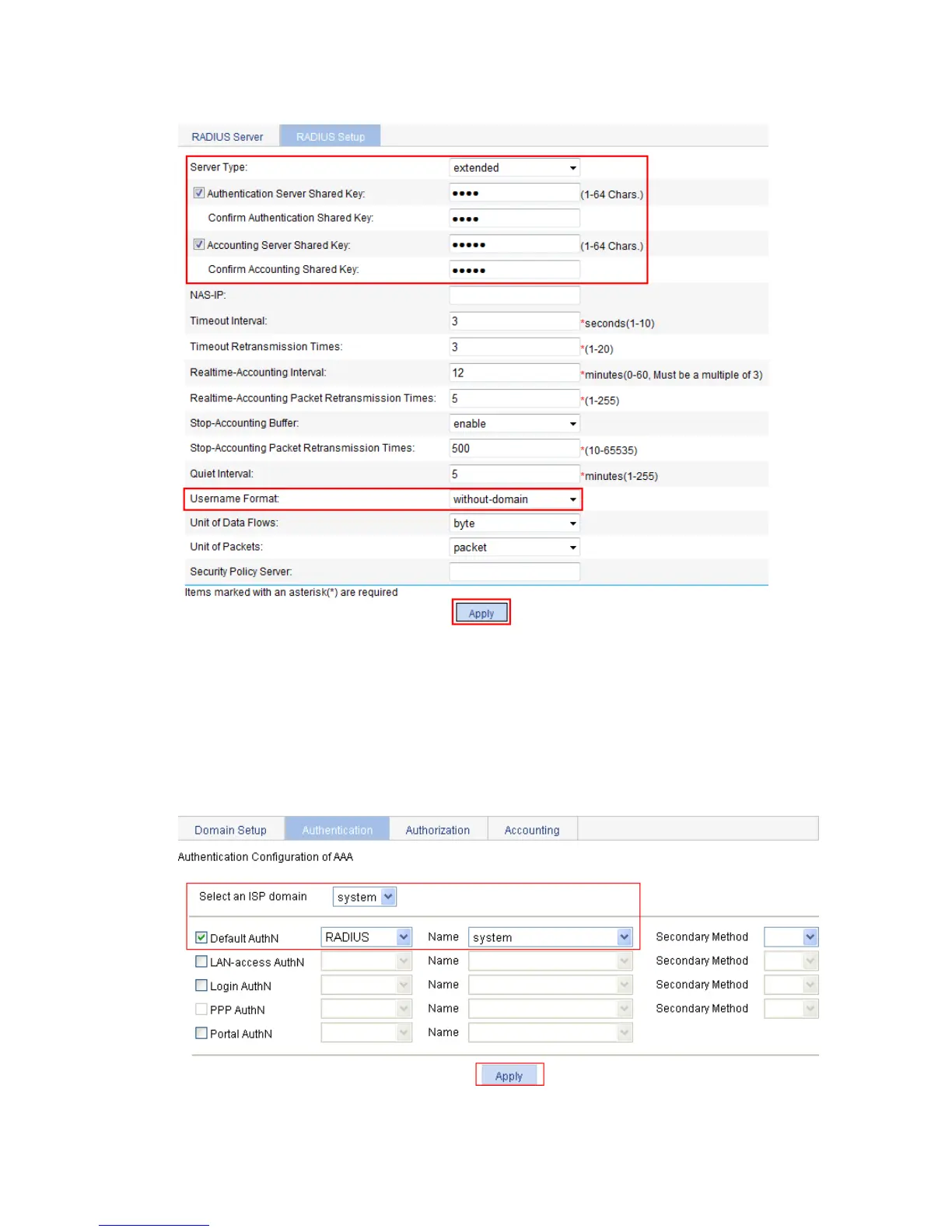

Figure 349 Configuring RADIUS parameters
Configuring AAA
1. From the navigation tree, select Authentication > AAA.
2. Click the Authentication tab.
3. Select the ISP domain system, the Default AuthN box, authentication method RADIUS from the list,
and authentication scheme system from the Name list.
Figure 350 Configuring AAA authentication
4. Click Apply.
