HP 830 Series User Manual

371

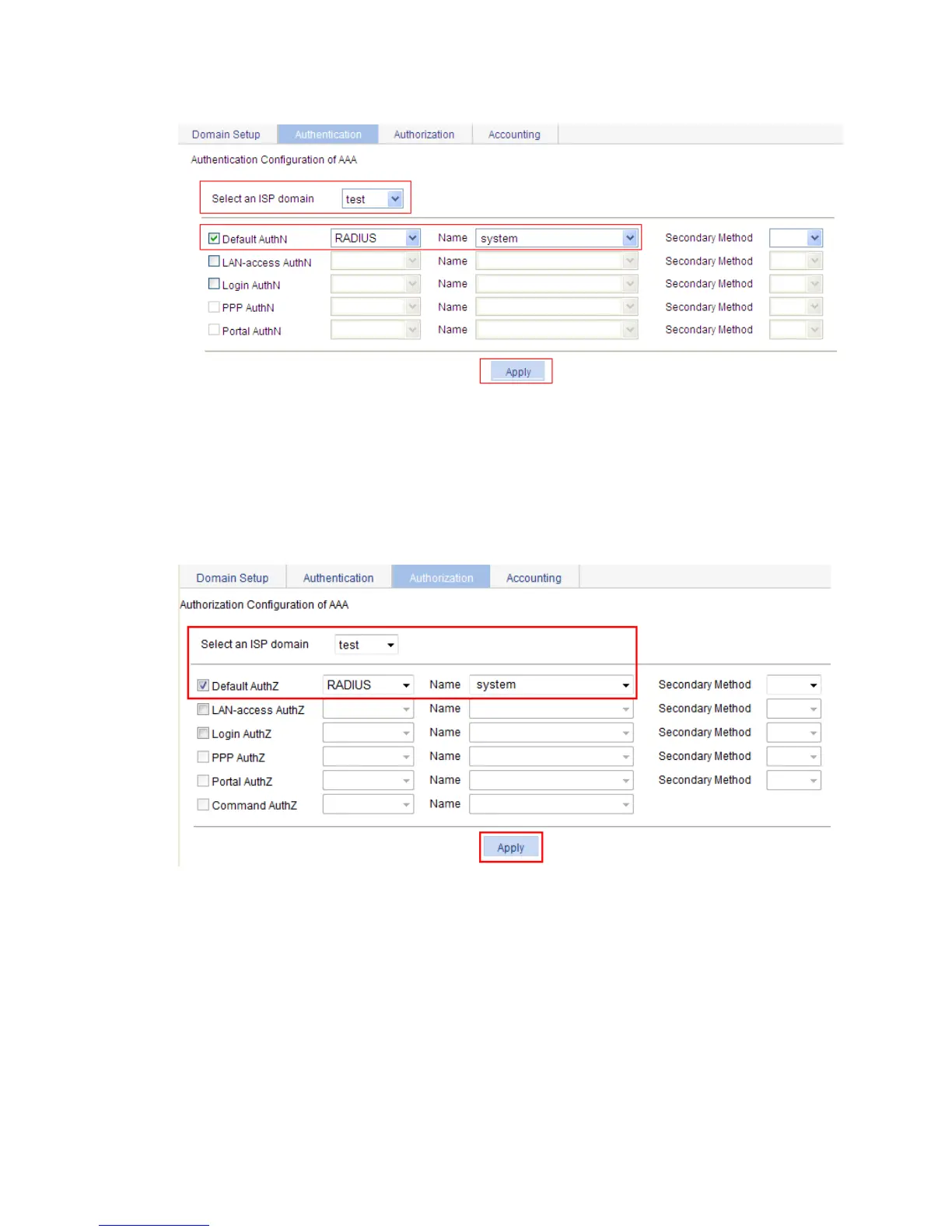

Figure 377 Configuring the authentication method for the ISP domain
e. On the Authorization tab, select the ISP domain test, select the Default AuthZ box, select
RADIUS from the Default AuthZ list, select system from the Name list to use it as the
authorization scheme, and click Apply.
A configuration progress dialog box appears.
f. After the configuration process is complete, click Close.
Figure 378 Configuring the authorization method for the ISP domain
g. On the Accounting tab, select ISP domain test, select the Default Accounting box, select
RADIUS from Default Accounting list, select system from the Name list to use it as the
accounting scheme, and click Apply.
The configuration progress dialog box appears.
h. After the configuration process is complete, click Close.
