HP 830 Series User Manual

378

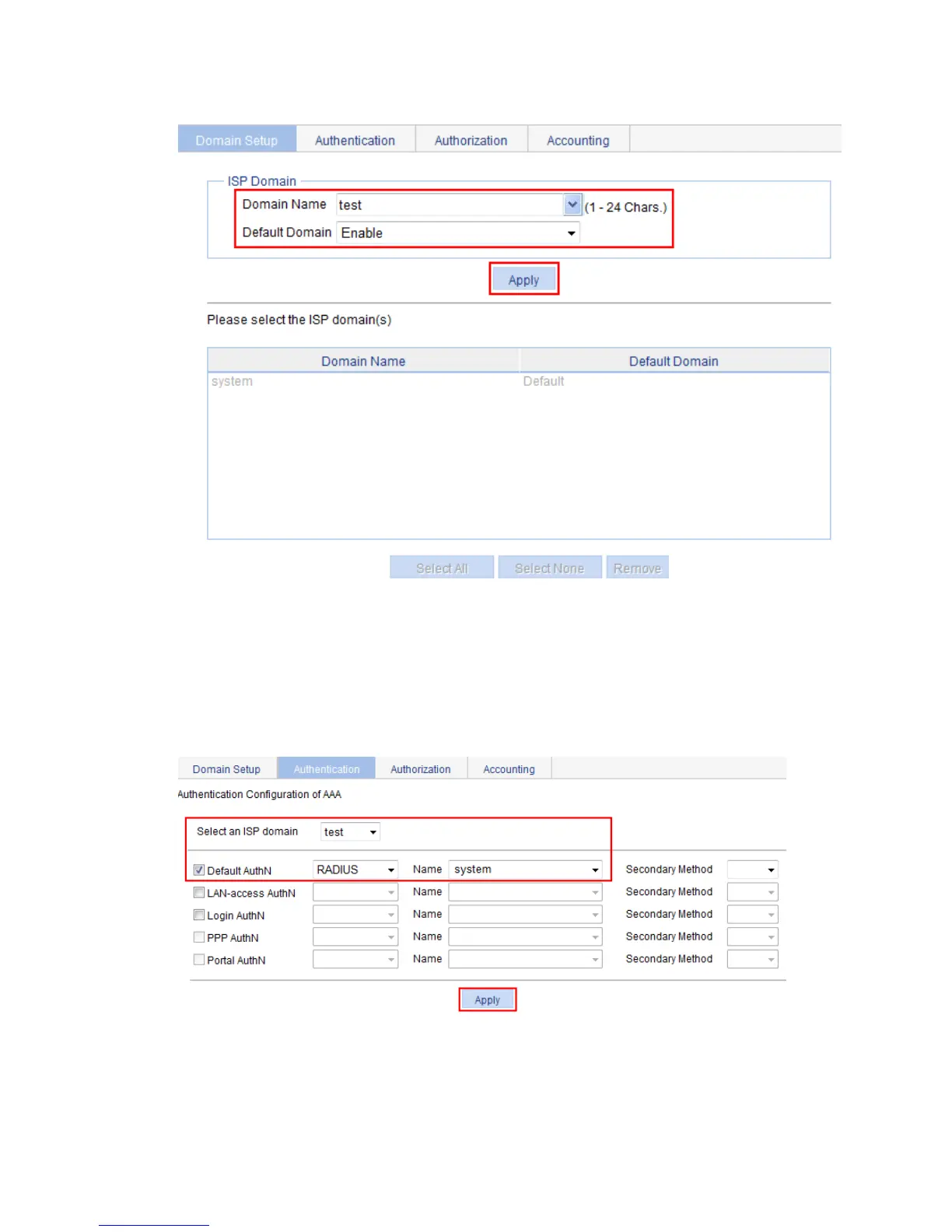

Figure 388 Creating an ISP domain
c. On the Authentication tab, select the ISP domain test, select the Default AuthN box, select
RADIUS from the Default AuthN list, select system from the Name list to use it as the
authentication scheme, and click Apply.
A configuration progress dialog box appears.
d. After the configuration process is complete, click Close.
Figure 389 Configuring the authentication method for the ISP domain
e. On the Authorization tab, select the ISP domain test, select the Default AuthZ box, select
RADIUS from the Default AuthZ list, select system from the Name list to use it as the
authorization scheme, and click Apply.
A configuration progress dialog box appears.
