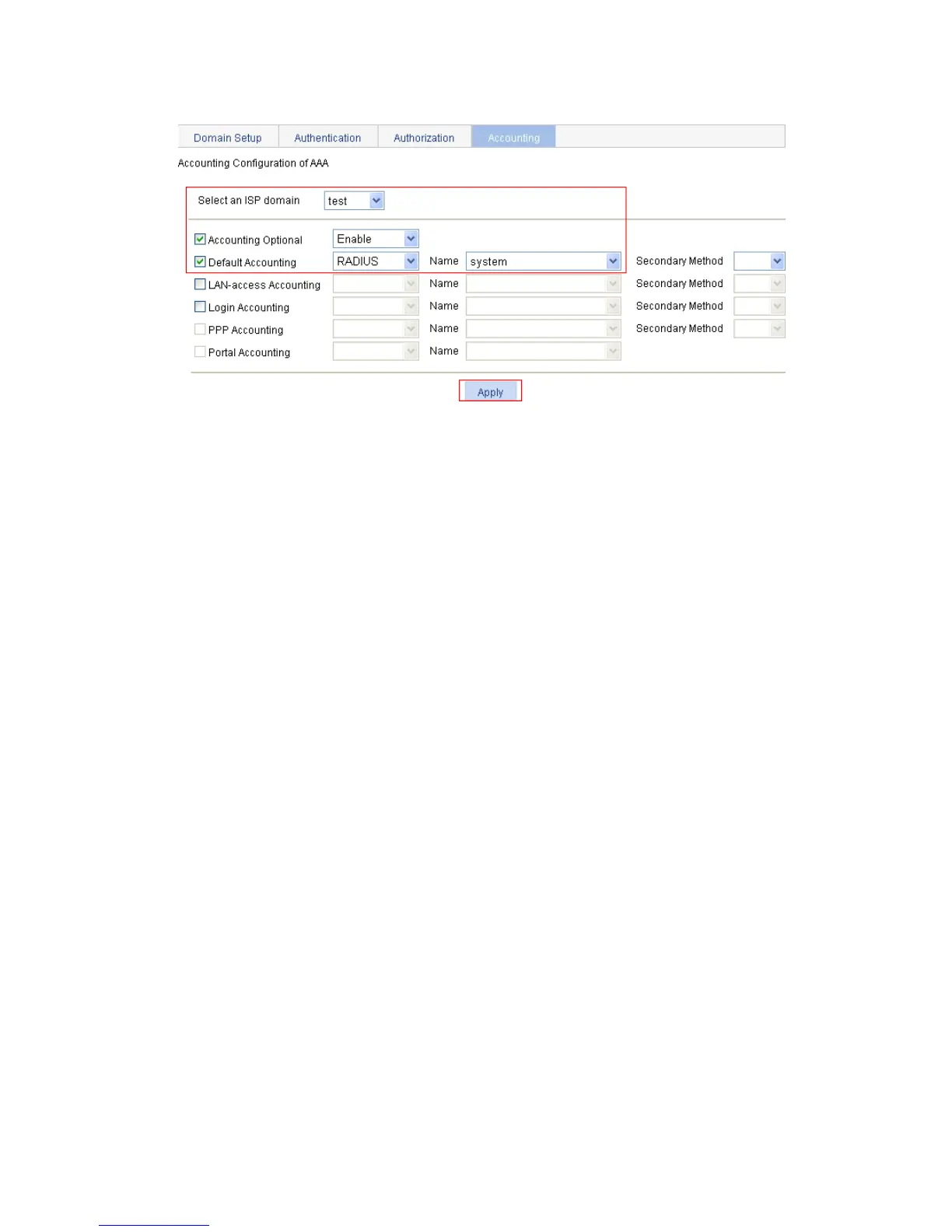

Figure 431 Configuring the accounting method for the ISP domain

14. Click Apply.

A configuration progress dialog box appears.

15. After the configuration process is complete, click Close.
