445

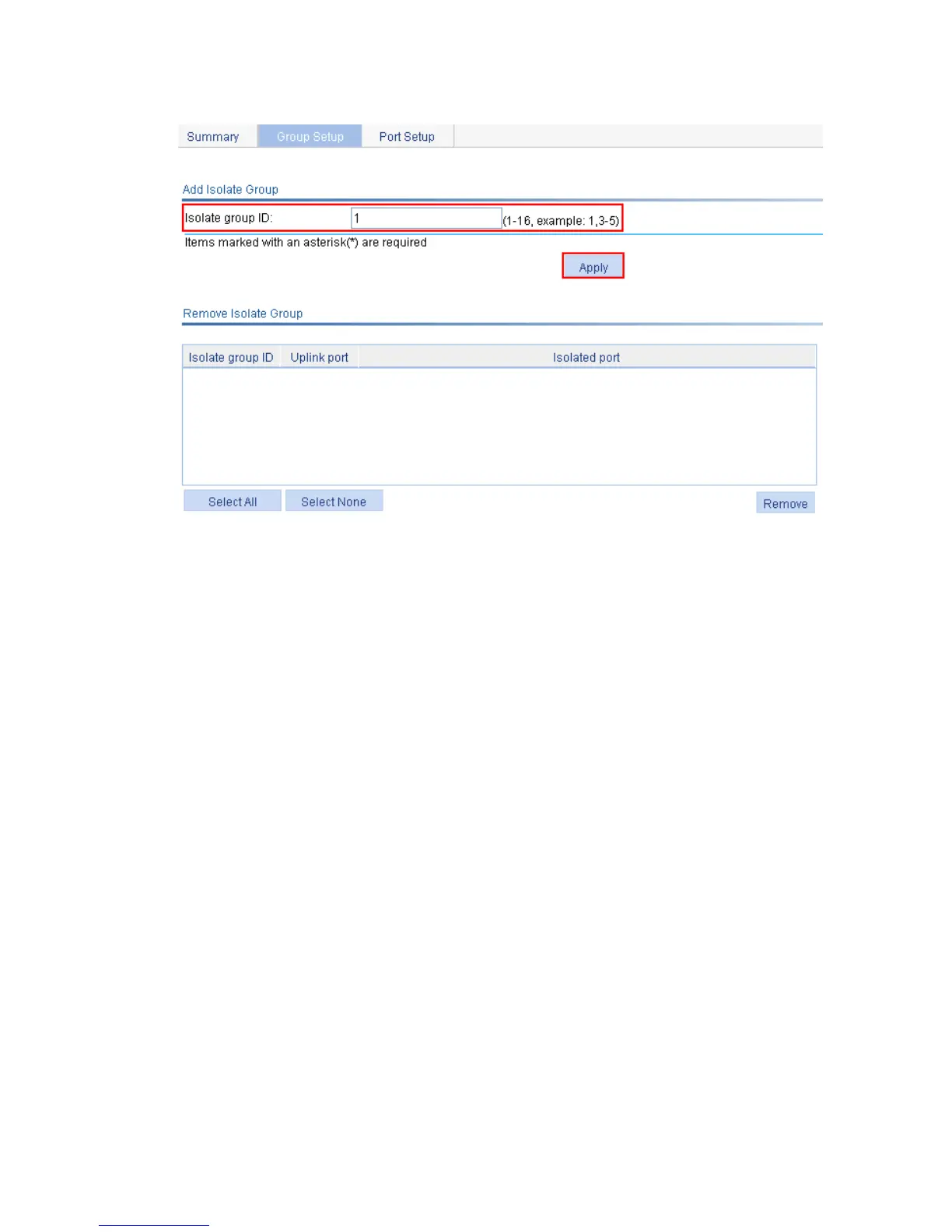

Figure 460 Adding a port isolation group
2. Assign GigabitEthernet 1/0/2, GigabitEthernet 1/0/3, and GigabitEthernet 1/0/4 to port
isolation group 1:
a. Click the Port Setup tab.
b. Select 1 from the Isolate group ID list.
c. Select Isolated port for Config Type.
d. Select 2, 3, 4 on the chassis front panel. 2, 3, 4 represent ports GigabitEthernet 1/0/2,
GigabitEthernet 1/0/3, and GigabitEthernet 1/0/4, respectively.
e. Click Apply.
A configuration progress dialog box appears.
f. After the configuration process is complete, click Close in the dialog box.
