HP 830 Series User Manual

498

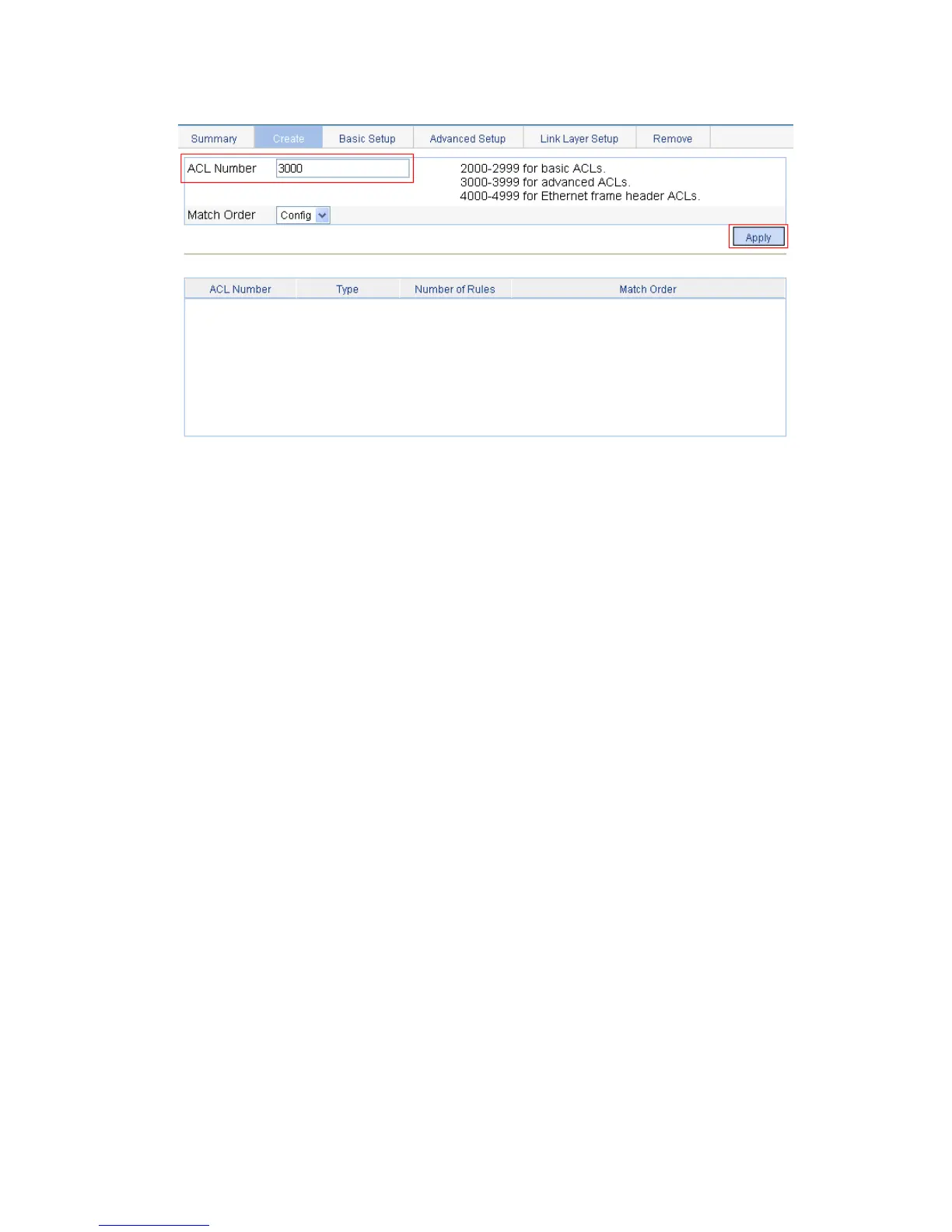

Figure 501 Adding an advanced IPv4 ACL
3. Define an ACL rule for traffic to the FTP server:
a. Click the Advanced Setup tab.
b. Select 3000 in the ACL list.
c. Select the Rule ID box, and enter rule ID 2.
d. Select Permit in the Action list.
e. Select the Destination IP Address box, and enter IP address 10.1.1.1 and destination wildcard
0.0.0.0.
f. Select test-time in the Time Range list.
g. Click Add.
