HP 830 Series User Manual

502

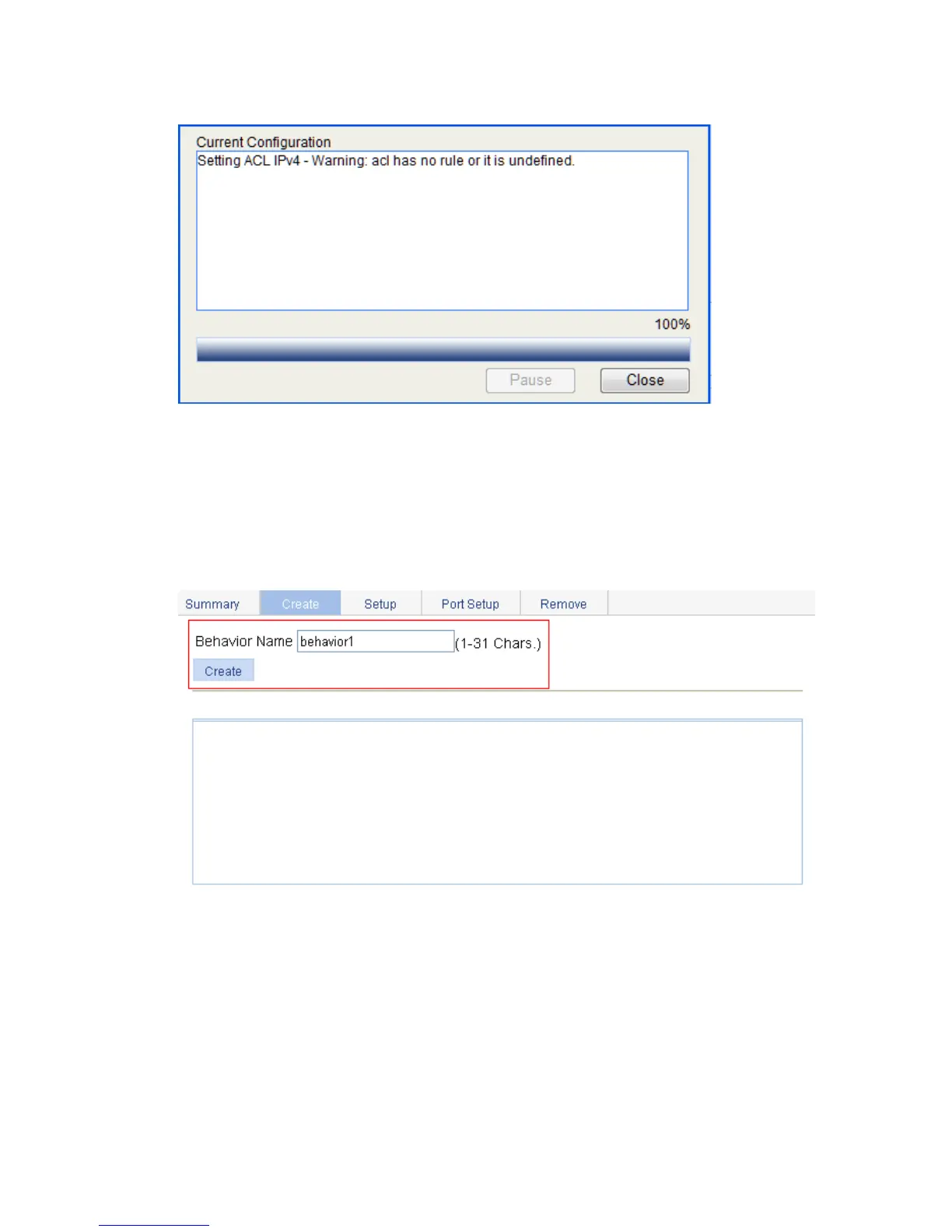

Figure 505 Configuration progress dialog box
6. Add a traffic behavior:
a. Select QoS > Behavior from the navigation tree.
b. Click the Create tab.
c. Enter the behavior name behavior1.
d. Click Create.
Figure 506 Adding a traffic behavior
7. Configure actions for the traffic behavior:
a. Click the Setup tab.
b. Select behavior1 in the list.
c. Select the Filter box, and then select Deny in the following list.
d. Click Apply.
A progress dialog box appears.
e. Click Close when the progress dialog box prompts that the configuration succeeds.
